Agentic Control Plane — Sympozium

The cluster can serve models. Layer 10 wired up Ollama and LiteLLM so anything on the network can call an OpenAI-compatible endpoint. But models behind an API are passive — they wait and respond. They do not act.

Layer 11 makes them act. Sympozium is a Kubernetes-native agentic control plane. Agents are Pods, policies are CRDsCustomResourceDefinitionThe object that teaches the Kubernetes API a new resource type. Install a CRD and the API server starts serving a kind it has never heard of, with validation and RBAC like any built-in., and every execution is a Job. It maps agentic concepts to Kubernetes primitives that the cluster already knows how to manage.

The Architecture

Five components in sympozium-system:

    flowchart LR
  subgraph Sympozium[Sympozium — Agentic Control Plane]
    CM[Controller Manager<br/>reconcile loop]
    WH[Webhook<br/>policy enforcement]

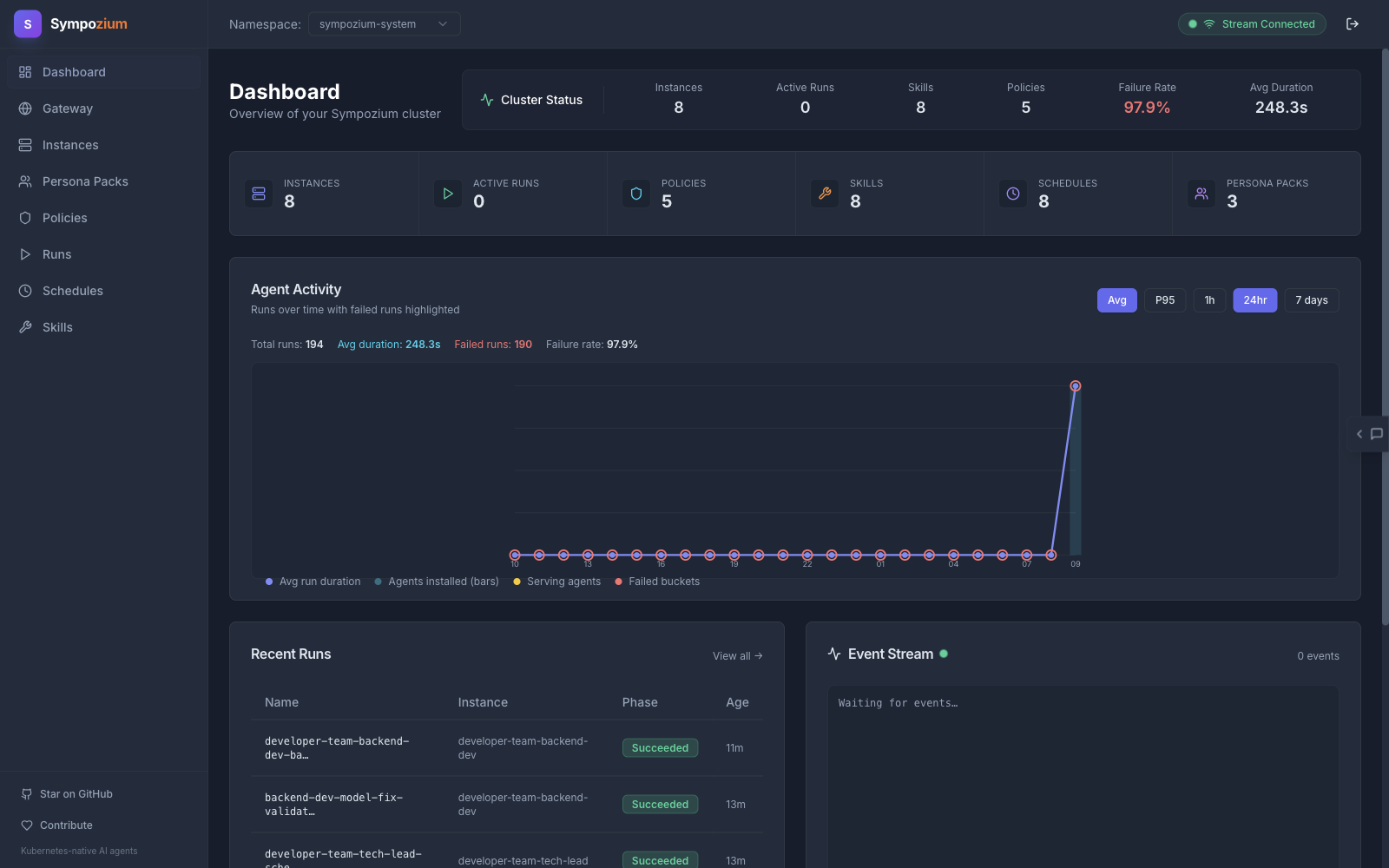

    AS[API Server<br/>embedded web UI<br/>192.168.55.207:8080]
    NATS[NATS JetStream<br/>1Gi Longhorn PVC]
    OTel[OTel Collector]
  end
  subgraph Agents[Agent Pods]
    AP[Ephemeral Jobs]
  end
  subgraph LLM[Inference]
    LL[LiteLLM<br/>litellm.litellm.svc:4000]
  end

  AS --> CM
  CM --> NATS
  WH -->|admission| AP
  CM -->|spawns| AP
  AP -->|via LiteLLM| LL
  OTel -->|traces + metrics| Observability


The load-bearing design choice: the controller reads its namespace from the downward API and creates all agent Jobs there. There is no agentNamespace configuration. That matters when PodSecurity standards collide with agent capabilities.

Prerequisites

• cert-manager (sync wave -1 so it deploys before Sympozium) — the webhook needs TLSTransport Layer SecurityThe encryption under HTTPS and most other secure protocols. What a certificate is for, and what fails visibly when the certificate does not match the hostname. certificates
• LiteLLM from Layer 10 — agents route through the inference gateway
• Longhorn default StorageClass — NATS persistence uses a 1Gi PVC

Deploying the Core

Three ArgoCD apps:

cert-manager

# apps/root/templates/cert-manager.yaml
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: cert-manager
  annotations:
    argocd.argoproj.io/sync-wave: "-1"

sympozium (Git-Sourced Chart)

The Sympozium chart is not published to any OCIOpen Container InitiativeThe body behind the standard image and runtime formats. "OCI registry" means any registry speaking that standard, not a specific vendor's. or Helm registry. ArgoCD must source it directly from GitHub:

sources:
  - repoURL: https://github.com/AlexsJones/sympozium.git
    targetRevision: v0.1.3
    path: charts/sympozium

Image tag override. The chart’s appVersion is 0.1.1 but images tagged v0.1.3 include a critical webhook fix — the PolicyEnforcer.Decoder field was uninitialized, causing a nil-pointer panic on every AgentRun admission. Override:

# apps/sympozium/values.yaml
image:
  tag: v0.1.3
certManager:
  enabled: true
crds:
  install: true
nats:
  persistence:
    enabled: true
    storageClass: longhorn
    size: 1Gi
networkPolicies:
  enabled: true
observability:
  enabled: true
defaultPersonas:
  enabled: false   # we deploy our own in sympozium-extras

sympozium-extras

The chart’s apiserver service template hardcodes ClusterIP with no type or annotations overrides. A separate LoadBalancer manifest:

# apps/sympozium-extras/manifests/service-lb.yaml
apiVersion: v1
kind: Service
metadata:
  name: sympozium-apiserver-lb
  namespace: sympozium-system
  annotations:
    lbipam.cilium.io/ips: "192.168.55.207"
spec:
  type: LoadBalancer
  selector:
    app.kubernetes.io/component: apiserver
  ports:
    - name: http
      port: 8080
      targetPort: http

Verify it works:

kubectl get svc -n sympozium-system sympozium-apiserver-lb
# NAME                     TYPE           CLUSTER-IP     EXTERNAL-IP       PORT(S)
# sympozium-apiserver-lb   LoadBalancer   10.43.143.40   192.168.55.207    8080:31717/TCP

curl -s http://192.168.55.207:8080/api/health | jq .
# {"status":"ok"}

Wiring LiteLLM Through Auth Secrets

Agent Pods must route through the LiteLLM gateway, not directly to api.openai.com. The PersonaPack CRD has no baseURL field — generated SympoziumInstances cannot set it. Manually created instances can (spec.agents.default.baseURL), but PersonaPack-generated ones cannot.

The fix: the controller injects auth credentials into agent pods via envFrom with SecretRef — the entire Secret is projected as environment variables. Adding OPENAI_BASE_URL alongside OPENAI_API_KEY in the auth Secret makes every agent pod discover the LiteLLM endpoint automatically:

# apps/sympozium-extras/manifests/external-secret.yaml
apiVersion: external-secrets.io/v1
kind: ExternalSecret
metadata:
  name: sympozium-llm-key
  namespace: sympozium-system
spec:
  secretStoreRef:
    name: infisical
    kind: ClusterSecretStore
  target:
    name: sympozium-llm-key
    template:
      data:
        OPENAI_API_KEY: "{{ .OPENAI_API_KEY }}"
        OPENAI_BASE_URL: "http://litellm.litellm.svc:4000"
  data:
    - secretKey: OPENAI_API_KEY
      remoteRef:
        key: SYMPOZIUM_LITELLM_KEY

The ExternalSecret template merges the Infisical-sourced API key with a static base URL. No plaintext secrets in the repo — only the endpoint URL is hardcoded, and the actual key refreshes every 5 minutes from Infisical.

PersonaPacks

PersonaPacks bundle identity, policy, skills, and schedule into a single CRD. The controller stamps out individual SympoziumInstances from the pack.

Platform Team

The sre-watchdog persona uses llmfit for hardware-aware model placement recommendations — it reads /proc, /sys, /dev, and /run/udev via sidecar injection.

DevOps Essentials

Developer Team (7-Persona)

The chart ships with a built-in developer-team PersonaPack — a 2-pizza dev team of seven agents. The cluster deploys a customised version with authRefs, policyRef, model: qwen3.5, and homelab-appropriate intervals (the default is 5 minutes for all agents, which saturates the RTX 5070):

Policy Enforcement

Two policy presets. The webhook enforces them at admission time — an AgentRun referencing a restrictive-policy persona that attempts write_file is rejected before the Pod starts.

# default-policy — trusted ops agents
toolGating:
  defaultAction: allow
  rules:
    - tool: execute_command
      action: ask
sandboxPolicy:
  required: false
networkPolicy:
  denyAll: false

# restrictive-policy — dev-facing agents
toolGating:
  defaultAction: deny
  rules:
    - tool: read_file
      action: allow
    - tool: list_directory
      action: allow
sandboxPolicy:
  required: true
  maxCPU: "2"
  maxMemory: 4Gi
networkPolicy:
  denyAll: true

Gotchas

Git-Sourced Chart, Not OCI

The chart lives at https://github.com/AlexsJones/sympozium.git, path: charts/sympozium. There is no Helm or OCI registry. ArgoCD Application sources must use repoURL + path instead of chart. This is the same pattern as the vendored Intel GPU DRADynamic Resource AllocationThe Kubernetes API for requesting specialised hardware — GPUs and accelerators — with far more expressiveness than the older device-plugin counter model. driver.

Image Tag Lags Behind Releases

The chart’s appVersion (0.1.1) trails the latest tag (v0.1.3). The v0.1.3 images fix a nil-pointer panic in the webhook’s PolicyEnforcer (Decoder field uninitialized). Without the override, every AgentRun admission produces:

invalid memory address or nil pointer dereference

PodSecurity Standard Blocks llmfit Sidecars

The llmfit SkillPack injects sidecars that require hostPID: true and hostPath volumes for /proc, /sys, /dev, /run/udev. Under the default baseline PodSecurity standard:

pods "frankie-heartbeat-5-zlxjf" is forbidden: violates PodSecurity
"baseline:latest": host namespaces (hostPID=true), hostPath volumes

The fix — a Namespace manifest in sympozium-extras that sets privileged:

apiVersion: v1
kind: Namespace
metadata:
  name: sympozium-system
  labels:
    pod-security.kubernetes.io/enforce: privileged

PersonaPack model Only Applies at Creation

The controller stamps each persona’s model into its SympoziumInstance when the instance is created. Editing the PersonaPack afterwards does not reconcile existing instances. Two traps:

1. Live edits get healed away. Patching the PersonaPack on the cluster works temporarily, but ArgoCD self-heal reverts it within the sync window. Merge the manifest change to main first.
2. Even a synced PersonaPack changes nothing. After the merge, existing SympoziumInstances still carry the old model. Delete them and let the controller recreate:

kubectl delete sympoziuminstances -n sympozium-system --all
sleep 30
kubectl get sympoziuminstances -n sympozium-system \
  -o custom-columns=NAME:.metadata.name,MODEL:.spec.model

CRD Discovery Timing

On initial deploy, sympozium-extras may fail to sync because ArgoCD has not yet discovered the Sympozium CRDs. Sync the root app manually, wait, then retry sympozium-extras.

Recovery Path

Missteps
