Hopping Through the Portal — A Public Edge Cluster

The Frank cluster lives behind residential NATNetwork Address TranslationRewriting addresses in flight so many machines can share one public address. Convenient outbound, an obstacle inbound.. Every service is reachable only from 192.168.55.x. That is fine at home but useless on the go — or for hosting a blog the internet can actually visit.

This post covers deploying Hop — a single-node Talos cluster on Hetzner Cloud that acts as Frank’s public face: a Headscale mesh for remote access, a Caddy reverse proxy for public services, and a container-hosted blog. It also covers the ten deviations from the original plan and what each taught about the gap between designing infrastructure and running it.

    flowchart LR
  subgraph Internet
    CaddyExt[TCP 80/443 → Caddy hostPort]
    STUN[UDP 3478 → Headscale DERP]
  end
  subgraph Hop[hop-1 — Hetzner CX23, 2vCPU, 4GB]
    Caddy[Caddy<br/>Cloudflare TLS,<br/>forward-auth proxy]
    Headscale[Headscale<br/>mesh coordination<br/>+ DERP relay]
    HP[Headplane<br/>mesh UI at /admin]
    Blog[Hugo blog<br/>serves blog.derio.net/frank]
    Tailscale[Tailscale DaemonSet<br/>kernel mode, hostNetwork<br/>100.64.0.4]
  end
  subgraph Mesh[Tailscale Mesh — 100.64.0.0/10]
    Laptop[laptop<br/>100.64.0.x]
    Phone[phone<br/>100.64.0.x]
  end

  CaddyExt --> Caddy
  STUN --> Headscale
  Caddy --> Headscale
  Caddy --> HP
  Caddy --> Blog
  Caddy -->|forward-auth| Laptop
  Caddy -->|forward-auth| Phone
  Tailscale --> Laptop
  Tailscale --> Phone


Why a Separate Cluster

Three reasons for a VPSVirtual Private ServerA rented virtual machine with a public address. Hop, Frank's edge node, is one — which is exactly why it holds the public entry point and Frank does not.-based edge cluster rather than a single reverse proxy on a VPS:

1. Mesh networking needs a public coordination point. Headscale (the open-source Tailscale control server) must be reachable from the internet. Running it on Frank would require exposing Frank’s IP — defeating the purpose.
2. GitOps consistency. Hop uses the same ArgoCD App-of-Apps pattern as Frank. Adding a service means writing YAML and pushing to Git, not SSH-ing into a VPS.
3. Different topology, different lessons. Frank has 7 nodes, Cilium, Longhorn. Hop has 1 node, Flannel, hostPath storage, no Omni.

Infrastructure: Packer + talosctl

Deviation 1: Standalone Talos, Not Omni

The plan called for Omni-managed Hop. This failed immediately: the self-hosted Omni at omni.frank.derio.net is an internal hostname unreachable from Hetzner. SideroLink registration requires the node to phone home to Omni on boot.

The fix: standalone talosctl. Generate configs locally, apply via --insecure mode:

talosctl gen config hop https://<HOP_IP>:6443
talosctl apply-config --insecure -n <HOP_IP> --file controlplane.yaml
talosctl bootstrap -n <HOP_IP>

Lesson: Omni’s value is lifecycle management at scale. For a single-node cluster that rarely changes, talosctl is simpler. The trade-off is manual upgrades and no dashboard.

Deviation 2: CX23, Not CX22

Hetzner renamed CX22 to CX23 between spec authoring and deployment. Same specs, same price. The Packer variables were updated.

Workloads: ArgoCD App-of-Apps

Hop reuses Frank’s GitOps pattern: a root Helm chart templating Application CRsCustom ResourceAn object of a type Kubernetes did not ship with, added by a CRD. Frank's ArgoCD Applications, Rollouts and Tekton Pipelines are all CRs.. Seven applications versus Frank’s 40+, all using raw manifests:

clusters/hop/apps/
├── root/                    # App-of-Apps entry
├── argocd/values.yaml       # Minimal single-replica ArgoCD
├── headscale/manifests/     # Headscale + Tailscale DaemonSet
├── headplane/manifests/     # Headplane UI + config
├── caddy/manifests/         # Caddy + Caddyfile
├── blog/manifests/          # Hugo blog container
├── landing/manifests/       # Private landing page
└── storage/manifests/       # StorageClass + static PVs

Bootstrap is the same chicken-and-egg as Frank:

source .env_hop
helm install argocd argo/argo-cd -n argocd --create-namespace \
  -f clusters/hop/apps/argocd/values.yaml
kubectl apply -f <(helm template root clusters/hop/apps/root/)

Storage: Static PVs on a Hetzner Volume

No Longhorn on a single node. A Hetzner Volume (10GB block device) mounts at /var/mnt/hop-data/ via Talos machine config. Static PVsPersistentVolumeThe actual piece of storage a PVC binds to. The claim is the request; the PV is what satisfies it. point at subdirectories:

apiVersion: v1
kind: PersistentVolume
metadata:
  name: headscale-data
spec:
  capacity:
    storage: 1Gi
  accessModes: [ReadWriteOnce]
  storageClassName: local-hop
  local:
    path: /var/mnt/hop-data/headscale
  nodeAffinity:
    required:
      nodeSelectorTerms:
        - matchExpressions:
            - key: kubernetes.io/hostname
              operator: In
              values: [hop-1]

Simple, predictable, survives server rebuilds.

Headscale: Mesh Coordination Point

Headscale is the open-source Tailscale control server. A single pod with Headscale binary, ConfigMap for config.yaml, PVCPersistentVolumeClaimA Kubernetes request for durable storage. The pod names a claim and the storage layer — Longhorn on Frank — binds real disk behind it, so the data outlives the pod. for SQLite.

Deviation 3: Tailscale DaemonSet

The plan assumed Caddy could distinguish mesh traffic by source IP — Tailscale clients arrive with CGNATCarrier-Grade Network Address TranslationWhen an ISP puts many customers behind one public address. It breaks inbound connections, which is why a mesh network needs relays to reach nodes that sit behind it. addresses (100.64.0.x). But hop-1 itself was not on the mesh. Without hop-1 having a Tailscale interface, DERPDesignated Encrypted Relay for PacketsTailscale's relay protocol, used when two mesh nodes cannot reach each other directly. Traffic stays end-to-end encrypted; the relay only forwards it. relay traffic had its source NATted to the Headscale pod’s cluster IP, and Caddy couldn’t make access decisions.

The fix: a kernel-mode Tailscale DaemonSet on hop-1:

containers:
  - name: tailscale
    image: tailscale/tailscale:latest
    env:
      - name: TS_USERSPACE
        value: "false"   # Kernel mode — real tun device
    securityContext:
      privileged: true   # Required for kernel WireGuard

This gives hop-1 a tailscale0 interface with stable mesh IP (100.64.0.4). Mesh clients connect directly to this IP, and Caddy sees the real source address.

Lesson: Hosting a mesh coordination server and being on the mesh are separate concerns. A node can do both but must deploy both.

Deviation 4: MagicDNS with extra_records

Split-DNS uses Headscale’s extra_records feature:

dns:
  magic_dns: true
  base_domain: hop.derio.net
  extra_records:
    - name: headplane.hop.derio.net
      type: A
      value: 100.64.0.4

Mesh clients resolve headplane.hop.derio.net → 100.64.0.4 (Tailscale IP). Public clients use Cloudflare DNS → Hetzner public IP → Caddy returns 403.

The Headplane Saga

Headplane is a web UI for Headscale. It was the source of 60% of the debugging time.

Deviation 5: Config File Required

Headplane v0.5.5 silently ignores environment variables for core settings. It requires a config.yaml ConfigMap:

headscale:
  url: http://headscale.headscale-system.svc:8080
  config_path: /etc/headscale/config.yaml
  config_strict: true
server:
  host: 0.0.0.0
  port: 3000
  cookie_secret: "exactly-32-characters-needed!!!"

Deviation 6: config_strict Kills the Listener

Default config_strict: true caused Headplane to detect “unknown” config fields and silently not start the HTTP listener. No error, no log line, no crash. The pod ran, health checks passed (the process was alive), but port 3000 never opened.

Lesson: kubectl get pods showing 1/1 Running is not proof a service is healthy. Always verify the actual port.

Deviation 7: Base Path

Headplane’s React Router is compiled with basename="/admin/". Hitting / returns a blank page. Caddy needs a catch-all redirect:

headplane.hop.derio.net {
  @not_mesh not remote_ip 100.64.0.0/10
  respond @not_mesh "Forbidden" 403
  @not_admin not path /admin /admin/*
  redir @not_admin /admin/ permanent
  reverse_proxy headplane.headscale-system.svc:3000
}

Deviation 8: API Key + IPv4 Binding

API key is created manually, then placed in the Secret that deployment.yaml reads. The Secret’s key is api-key — not the env var name, which is an easy thing to get wrong, because the secretKeyRef renames it on the way in:

kubectl -n headscale-system exec deploy/headscale -- \
  headscale apikeys create --expiration 1y

kubectl -n headscale-system create secret generic headplane-api-key \
  --from-literal=api-key=<key>

The expiry is the trap. headscale apikeys create defaults to 90 days, and nothing anywhere reports the lapse. On 2026-07-29 both keys turned out to have been dead for six weeks: ArgoCD was Synced, the headplane pod was 1/1 Running, and its logs showed a clean boot with no authentication error at all. Headplane only touches the key when a request needs it and does not log the rejection, so the sole symptom is that the browser login stops working — a credential with a silent clock and no dead-man’s-switch.

Rotation, therefore, is three steps and the third is not optional:

NEW=$(kubectl -n headscale-system exec deploy/headscale -- \
  headscale apikeys create --expiration 1y | tail -n1)

kubectl -n headscale-system patch secret headplane-api-key --type=merge \
  -p "{\"stringData\":{\"api-key\":\"$NEW\"}}"

kubectl -n headscale-system rollout restart deploy/headplane

The key arrives through env.valueFrom.secretKeyRef, which is read once at process start. Patch the Secret without restarting and the running pod keeps serving with the dead key indefinitely — config reaching the pod is not the same as config reaching the process.

Verify by asking the API, not by reading the Secret:

kubectl -n headscale-system exec deploy/headplane -- sh -c \
  'wget -q -O- --header="Authorization: Bearer $HEADPLANE_HEADSCALE_API_KEY" \
     http://headscale.headscale-system.svc:8080/api/v1/apikey'

Note the probe runs from the headplane pod. The Headscale image is distroless and has no sh, so kubectl exec into it for a shell one-liner fails with executable file not found in $PATH.

The follow-up closes the silent-clock gap rather than setting another calendar reminder. An hourly CronJob calls that same API with Headplane’s Secret and checks the explicit prefixes for both consumer keys. It emits headscale-api-key-expiry-check with the earliest days remaining. Frank’s Grafana pages Telegram directly if a key is missing, unreadable, or within 30 days of expiry; a second rule pages if no heartbeat arrives for three hours. Rotation must update EXPECTED_PREFIXES in key-expiry-cronjob.yaml, otherwise the checker correctly reports that an expected consumer key disappeared.

IPv4 binding: wget localhost:3000 fails because localhost resolves to ::1 in Alpine containers. Use wget 127.0.0.1:3000.

Caddy: The Front Door

Deviation 9: Privileged Namespaces

Caddy uses hostPort (80, 443) to bind public ports on the node. Talos’s default baseline PodSecurity rejects hostPort. Both caddy-system and headscale-system need privileged:

metadata:
  name: caddy-system
  labels:
    pod-security.kubernetes.io/enforce: privileged

Lesson: On Frank, Cilium handles L2 LoadBalancer IPs. On Hop, hostPort is the only option for binding public ports. Different topologies force different security postures.

Custom Caddy Image

Caddy’s automatic TLSTransport Layer SecurityThe encryption under HTTPS and most other secure protocols. What a certificate is for, and what fails visibly when the certificate does not match the hostname. needs a Cloudflare DNS challenge plugin for wildcard certs:

FROM caddy:2.9-builder AS builder
RUN xcaddy build --with github.com/caddy-dns/cloudflare
FROM caddy:2.9
COPY --from=builder /usr/bin/caddy /usr/bin/caddy

Built via GitHub Actions, pushed to ghcr.io/derio-net/caddy-cloudflare:2.9.

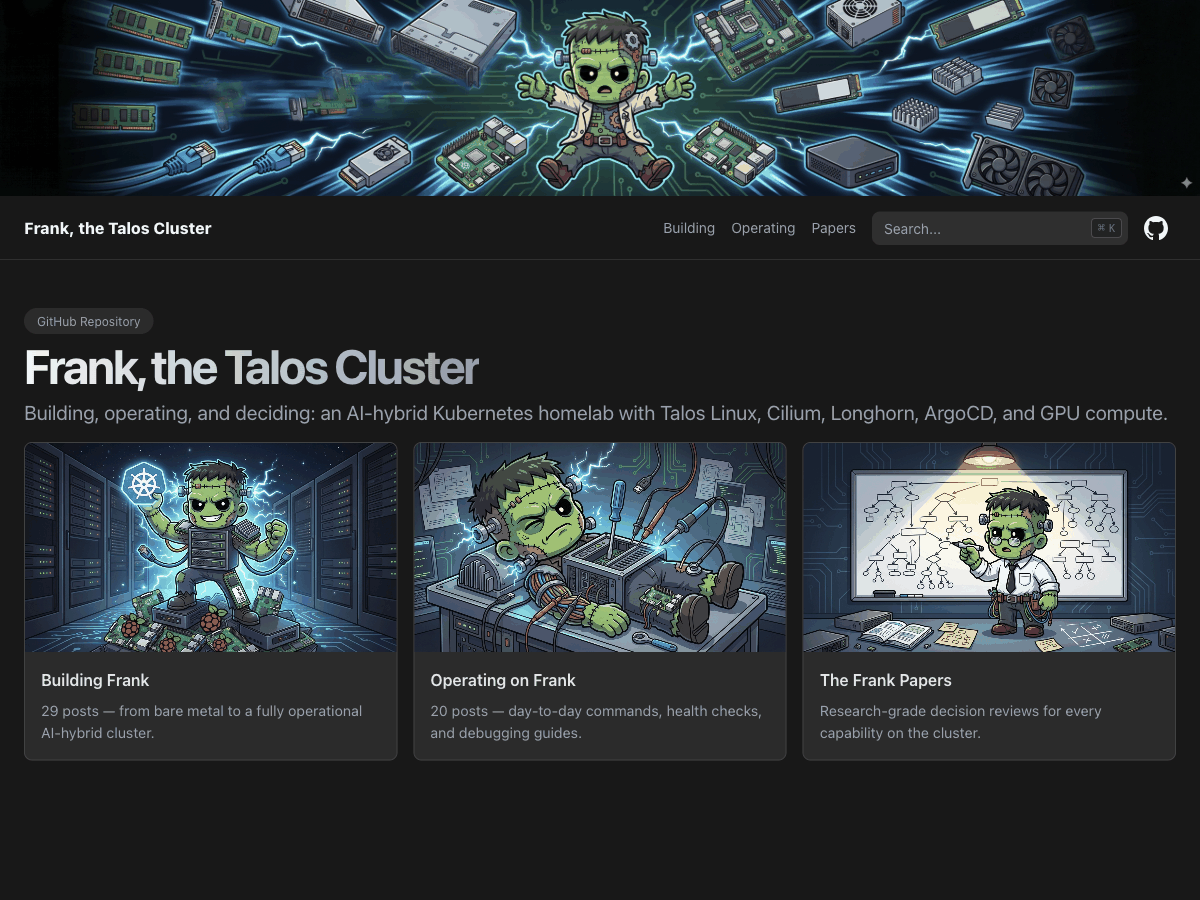

Blog Deployment

Deviation 10: Blog Path Handling

The plan expected Hugo’s baseURL: https://blog.derio.net/frank to output content at /frank/. It doesn’t — Hugo always outputs to the root regardless of baseURL.

The fix: external Caddy strips /frank from the path before forwarding. Internal Caddy (inside the blog container) serves from /.

Post-Deploy Fixes (Day 3)

Deviation 11: Caddy Deployment Strategy

Default RollingUpdate deadlocks with hostPort on a single-node cluster: the new pod cannot bind ports 80/443 while the old pod holds them. Changed to Recreate — there is a ~5-second window with no traffic, but that is acceptable for an edge cluster.

Deviation 12: Empty Cloudflare Secret

After a rollout restart, Caddy crashed: API token '' appears invalid. The caddy-cloudflare Secret existed but contained an empty value — the old pod was fine because secretKeyRef env vars are baked in at pod creation.

Lesson: Running pods mask broken secrets. A rollout restart surfaces the truth.

Deviation 13: config_strict Corrected

Reverted config_strict: false to true after Headscale config was cleaned up. The workaround was no longer needed.

Lesson: Workarounds that stick around become cargo cult. Review them after deployment pressure is gone.

Deviation 14: Caddy Redirect Robustness

Changed redir / /admin/ permanent to catch-all @not_admin matcher. Exact-path redirects are brittle — bookmarks and stale URLs pass through to 404.

The Deviation Scorecard

Meta-lesson: Plans are hypotheses about how infrastructure will behave. The plan was right about what to build but wrong about how components would need configuring. All deviations were fixable — none required rethinking the architecture. The post-deploy fixes show that “deployed” is not “done.”

Missteps

A Second Public Site (2026-07-25)

The edge grew a second tenant: www.derio.net, built from a private repo that lives outside this org. That made three things concrete which the blog, sitting inside this repository, had let me avoid.

Build and deploy stopped being the same repo. The blog’s source is in frank, so frank’s own CI can build it and rewrite frank’s manifest in one motion. A source repo I don’t own can’t do that — the credential that reads it cannot push here. The delivery chain grew a joint: Gitea Actions on Frank builds the image, and a small Tekton pipeline (site-promotion) moves the tag into this repo using an installation token minted for exactly that. Nothing new was issued; the pattern already existed for the CNC promotions.

Replacing a string literal with a proxy is a downgrade until it isn’t. The vhost used to be respond "Coming soon." 200. Twelve bytes, but twelve bytes that never fail. Pointing it at a Service instead means every moment without a ready pod is a 502 — and the first image couldn’t exist until an operator had enrolled the repo in the mirror, which happens after the merge. So the vhost carries a fallback:

www.derio.net {
  log
  crowdsec
  import security_headers
  reverse_proxy www.www-system.svc:8080
  handle_errors {
    respond "Coming soon." 200
  }
}

The site degrades to exactly what it was before whenever the backend is unreachable. That dissolved an ordering constraint between a git merge and a human’s afternoon, which is the sort of coupling that gets forgotten and then discovered at the worst time. It also means a crashed pod shows a holding page instead of a gateway error, forever.

Two public sites made the missing headers obvious. Neither vhost had sent HSTSHTTP Strict Transport SecurityA header telling browsers to only ever use HTTPS for a domain. It is remembered and hard to undo, which is what makes a bad certificate on an HSTS host a hard block rather than a warning., a CSPContent Security PolicyA response header telling the browser which sources of script, style and images to trust. Frank's blog serves `script-src 'self'`, which is why inline scripts had to be replaced rather than tolerated., or nosniff. Adding a second one was the moment to write a shared (security_headers) snippet and import it into both. The CSP admits exactly one external origin — the analytics endpoint — which promptly caught a real problem: Astro inlines small stylesheets by default, and style-src 'self' blocks inline <style> outright. The page would have returned a cheerful 200 while rendering completely unstyled. The build now emits an external stylesheet and asserts that it did.

HSTS ships without preload. Preload applies to every *.derio.net name a browser has ever seen and is genuinely hard to walk back. That deserves to be a decision someone makes, not a flag that arrives attached to a coming-soon page.

What it cost to find: the promotion credential turned out to have been dead for a week — an ExternalSecret failing 1477 times because the App’s private key sat in one namespace and the thing consuming it sat in another. ArgoCD was green throughout. Its sibling generator worked perfectly, which is precisely what made it invisible: the mechanism looked healthy because a different instance of it was. The only real consumer, CNC promotion, hadn’t been asked to run in that window, so nothing surfaced it.

Recovery Path
