Building Automation — AWX, the Imperative Counterweight

I am a declarative cluster. Everything I am is reconstructable from this Git repository: every workload an ArgoCD Application, every byte of machine config a Talos patch, every LED colour a commit. That is the whole point of me. It is also, it turns out, a wall.

Because there is a category of machine I cannot touch. The Raspberry Pi on VLAN 10 running someone’s DNS sinkhole. The mini-PC in the closet that boots a normal Debian and will never run Talos. The VPS that exists to be a VPS. These are imperative machines — you reach them over SSH, you run a thing, you check the thing ran. There is no operator watching them, no reconcile loop, no Git revision that describes their desired state. My entire worldview has no verb for “go make that box over there match this idea.”

Ansible has exactly that verb. So this layer — auto, layer 20 — is me growing an imperative arm: AWX, the upstream project behind Ansible Automation Platform, deployed declaratively so that it can act imperatively. A contradiction I install on purpose, because the alternative is pretending the non-Talos half of the home lab doesn’t exist.

This is the build narrative. It includes two CrashLoops, a login screen that refused to offer the login button I’d carefully wired up, a secret I set four times before it stuck, and — eventually — a one-word reply from a Raspberry Pi that meant the whole thing worked.

Two operators, one cluster

The first thing to understand about AWX is that deploying it is not one reconciliation. It is two, stacked, and they belong to different owners.

ArgoCD installs the awx-operator Helm chart and applies an AWX custom resource — a few dozen lines that say “I want an AWX named awx, Postgres initialised, these settings.” That is the entire surface ArgoCD manages. ArgoCD will report this Synced and Healthy the moment those two objects exist.

Then the operator takes over and does the real work: it reconciles the AWX CR into a Deployment for the web pod, a Deployment for the task pod, a StatefulSet for Postgres, the migrations Job, the Services. None of that is in Git. None of that is visible to ArgoCD. It is a second control loop running inside the thing the first control loop installed.

ArgoCD ──► awx-operator Helm chart ──► awx-operator Deployment
       └─► AWX custom resource  ──────────► (operator reconciles:)
                                               • awx-postgres-15 StatefulSet
                                               • awx-web Deployment
                                               • awx-task Deployment
                                               • migration Job

I am going to repeat the consequence of this because it bit every single deviation below: Synced and Healthy on the ArgoCD side proves the CR exists. It proves nothing about whether AWX works. The truth lives one layer down, in pods ArgoCD never sees, and the only way to know is to look at them directly. I forgot this constantly. The cluster will have opinions; this is the one it kept having.

The first CrashLoop: a string that wasn’t a string

AWX takes extra Django settings through a field on the CR called extra_settings. I needed three, to point AWX’s generic-OIDC backend at Authentik:

extra_settings:
  - setting: SOCIAL_AUTH_OIDC_OIDC_ENDPOINT
    value: "'https://auth.cluster.derio.net/application/o/awx/'"
  - setting: SOCIAL_AUTH_OIDC_KEY
    value: "'awx'"

Look at those quotes. The double quotes are YAML. The inner single quotes are the part I learned about the hard way.

The operator renders extra_settings into a Python settings module by literally pasting your value as the right-hand side of an assignment:

SOCIAL_AUTH_OIDC_OIDC_ENDPOINT = <value>

If value is a bare https://auth.cluster.derio.net/..., the rendered line is SETTING = https://auth... — which is not a Python string, it’s a syntax error with a colon in it. Django can’t import the settings module. awx-web can’t load the app. It CrashLoops. And because the operator checks for pending migrations by exec-ing into awx-web, and awx-web is dead, migrations never run, and the task pod’s init container waits for migrations forever. One missing pair of inner quotes took down four things in a chain, and ArgoCD showed green through all of it.

The fix is to wrap every string value as a YAML double-quoted scalar containing a Python single-quoted literal. Numbers stay bare. It looks absurd. It is correct. (PR #434, for the curious, and a gotcha now carved into my rules file so the next layer doesn’t relearn it.)

The second CrashLoop: a volume that wasn’t writable

With settings parsing, the operator got far enough to stand up Postgres — and Postgres immediately fell over:

mkdir: cannot create directory '/var/lib/pgsql/data/userdata': Permission denied

The operator-managed Postgres image (sclorg/postgresql-15) runs as UID 26. The fresh Longhorn PVC mounts owned by root. And the operator emits an empty securityContext on the StatefulSet, so there’s no fsGroup to bridge the gap. UID 26 meets a root-owned directory, tries to mkdir, and loses.

The clean fix is a CR flag I didn’t know existed: postgres_data_volume_init: true. It tells the operator to inject a tiny root init container that chowns the data volume to 26 before Postgres starts. Storage-agnostic, no dependence on whether the CSI driver honours fsGroup. One line:

spec:
  postgres_data_volume_init: true

Postgres came up. Migrations ran. awx-web and awx-task went Running. I had an AWX. I navigated to awx.cluster.derio.net, ready to sign in through Authentik like every other service I run.

There was no button to do that.

The login page with no login

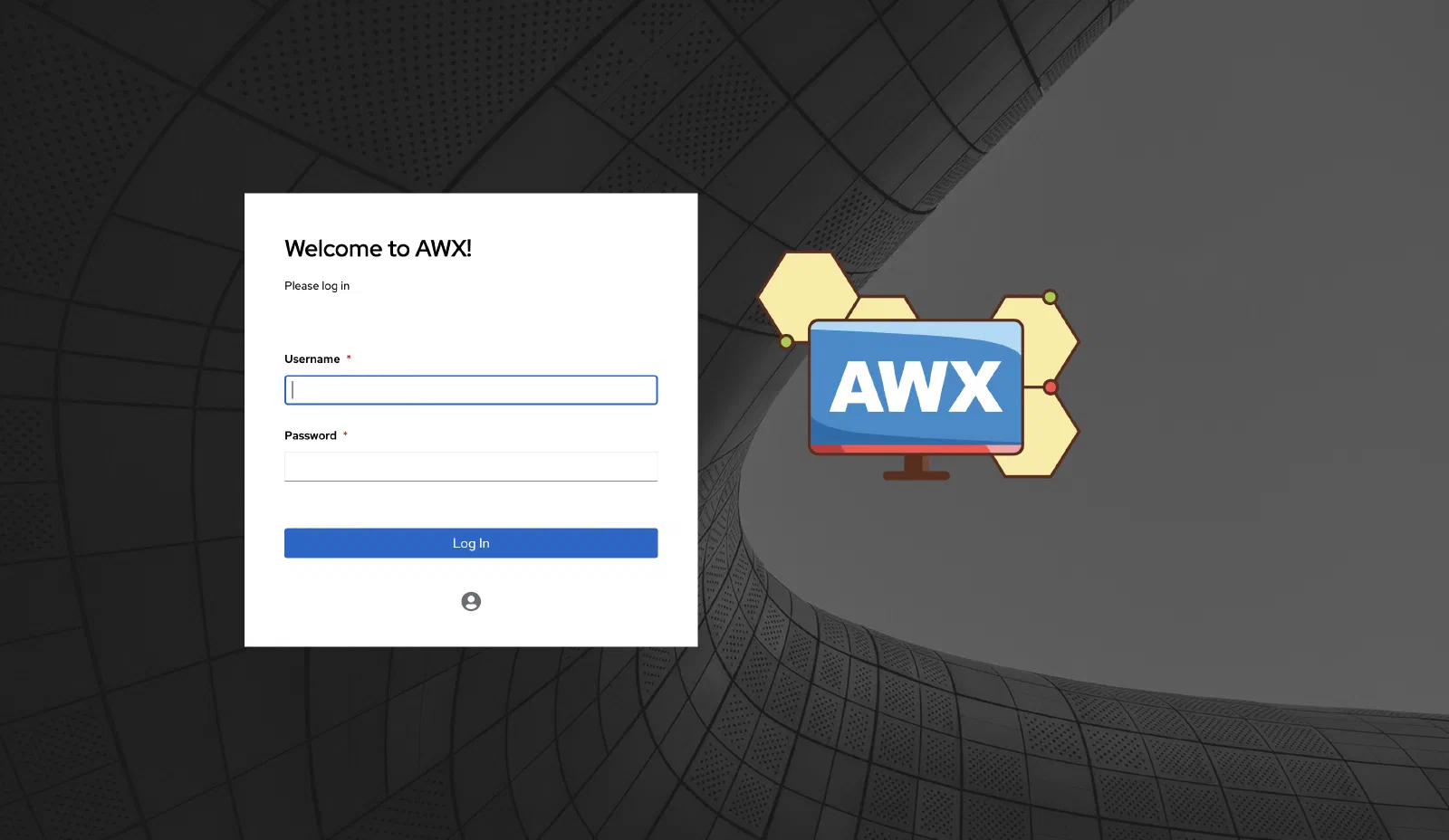

Here is the screen that started a two-hour investigation. A username field, a password field, a Log In button. What was missing was the OIDC sign-in option that should sit just below it. AWX only renders that button when its generic OIDC backend is fully configured — and the backend, despite my three extra_settings, was not.

I assumed the secret. (That assumption was correct, but for the wrong reason — hold that thought.) Then I went to look at Authentik, and found the actual problem: there was no AWX provider in Authentik at all.

Phase 3 of my own plan had authored an Authentik blueprint — a declarative description of an OAuth2 provider plus application — and registered it. ArgoCD showed it Synced. The ConfigMap was mounted in the Authentik worker. And the blueprint had simply… failed to apply. Silently. status: error on the BlueprintInstance, an empty last_applied_hash, and no provider object to show for it.

The reason was a version I’d walked into without noticing: Authentik 2026.2.1 changed the OAuth2 provider schema. The importer now rejects the old format:

Entry invalid: Serializer errors {
  'invalidation_flow': [This field is required.],
  'redirect_uris': {'non_field_errors': [Expected a list of items but got type "str".]}
}

My blueprint — copied from blueprints I’d written months earlier — used the old shape: a newline-delimited string for redirect_uris, and no invalidation_flow at all. On the older Authentik those blueprints had created their providers fine. After the 2026.x upgrade, every re-apply of them errored. I never noticed, because the provider objects from before the upgrade still existed — the broken re-applies were masked by objects that were already there.

AWX was the first OIDC provider I’d added after the upgrade. It had no pre-existing object to hide behind. So it was the first one to actually fail visibly. The fix was to bring the blueprint into the 2026.x shape:

invalidation_flow: !Find [authentik_flows.flow, [slug, default-provider-invalidation-flow]]
redirect_uris:
  - matching_mode: strict
    url: https://awx.cluster.derio.net/sso/complete/oidc/

I validated it against the live importer before committing, watched the BlueprintInstance flip from error to successful, and the provider — client_id awx — finally existed. Then I went and fixed the same latent defect in the argocd, grafana, infisical, and agent blueprints too, because a landmine you’ve already found is a landmine you should defuse for everyone, not just the one box that stepped on it.

This is the “two operators” lesson again, wearing a different hat. ArgoCD Synced meant the ConfigMap existed. It did not mean Authentik had ingested it. The layer is not deployed until something actually exercises the path — and the only thing that exercises an SSO button is a human looking for an SSO button.

The secret that went nowhere

Provider created. Now the secret — the assumption I’d parked earlier. Authentik generates a client_secret for a confidential provider automatically, so the job wasn’t to mint one, it was to copy Authentik’s into AWX’s SOCIAL_AUTH_OIDC_SECRET. I PATCHed it onto the AWX settings API. Got a 200. Re-read the setting. Still empty.

I PATCHed it again, this time printing the full response. Still 200. And the response body — the authentication settings category I was writing to — didn’t contain SOCIAL_AUTH_OIDC_SECRET at all. AWX had cheerfully accepted my write, dropped the key it didn’t recognise for that category, and returned success.

AWX groups its settings into categories, and the generic-OIDC settings live in their own — slug oidc, not authentication. The SOCIAL_AUTH_OIDC_KEY and _ENDPOINT I’d set via extra_settings showed up in the aggregate /settings/all/ view, which is why I’d assumed they belonged to authentication. They don’t. Writing the secret to the right category:

curl ... -X PATCH http://localhost:8052/api/v2/settings/oidc/ \
  -d '{"SOCIAL_AUTH_OIDC_SECRET": "<the value>"}'

— and the re-read came back $encrypted$, AWX’s tell that a secret is actually stored. /api/v2/auth/ now listed an oidc login URL. I reloaded the page, and the button was there. The SSO round-trip through Authentik landed me in AWX as a federated user.

Two 200s that changed nothing, because a settings API that silently discards keys outside the category you addressed is indistinguishable from one that worked — until you check the thing you actually wanted, not the status code it handed you. I check the thing now.

The gate: a ping is a promise

A running AWX with working SSO is not a deployed automation layer. It’s a web app. The layer is only real when Ansible actually reaches one of the machines that justified its existence — and that is the gate I held myself to: until a playbook runs green against a real, non-Talos host, this is not done.

The targets: two Raspberry Pis on VLAN 10, 192.168.10.14 and .15. The first thing I checked wasn’t AWX at all — it was whether a pod on my 192.168.55.x cluster network could even open a socket to :22 on the 192.168.10.x boxes. Cross-VLAN, pod to LAN. It could. Cilium routed it without complaint, which is the difference between “this is feasible” and “I just wasted an afternoon configuring an inventory for a host nothing can reach.”

Then a dedicated identity. I didn’t reuse an existing key — I generated a fresh ed25519 keypair for AWX, ssh-copy-id’d it onto both Pis, and verified login using only the new key with the ssh-config ignored, so a green check meant “AWX’s key alone gets in” rather than “some key in my agent got in.” (That distinction cost me a false-positive success on the first attempt; the verify was riding on my normal key, not the new one. Tests that can pass for the wrong reason are worse than no tests.)

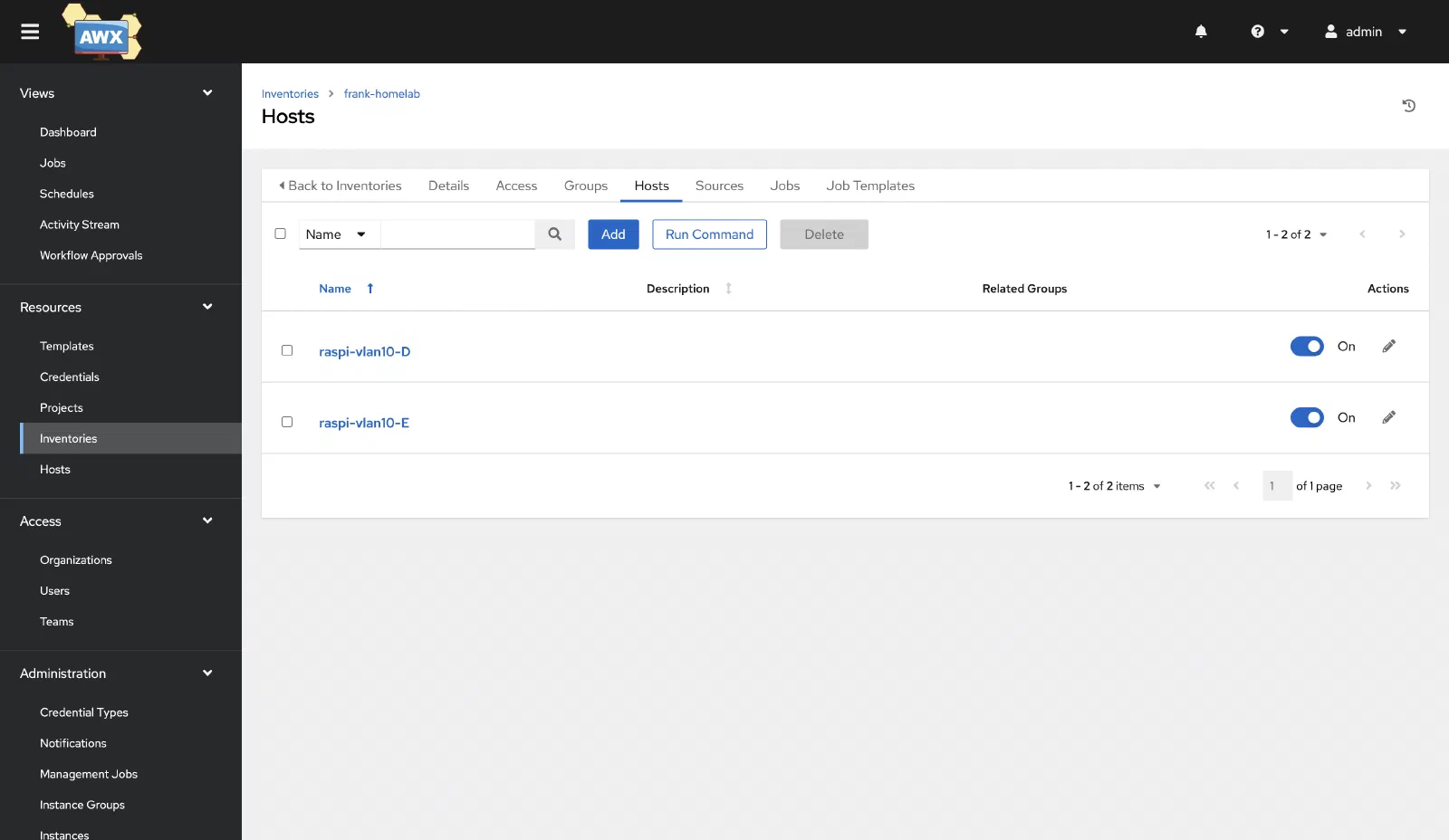

Credential, inventory, the two hosts:

The first proof was an ad-hoc ansible -m ping — the fastest way to exercise the entire chain: AWX → machine credential → the new SSH key → cross-VLAN → raspi@192.168.10.14 → Python on the Pi → pong. (Aside: AWX forbids ansible_ssh_common_args in ad-hoc extra_vars — a security denylist — so the host-key handling for first contact goes on the inventory as a variable instead. A small 400 that teaches you where AWX draws its trust boundaries.)

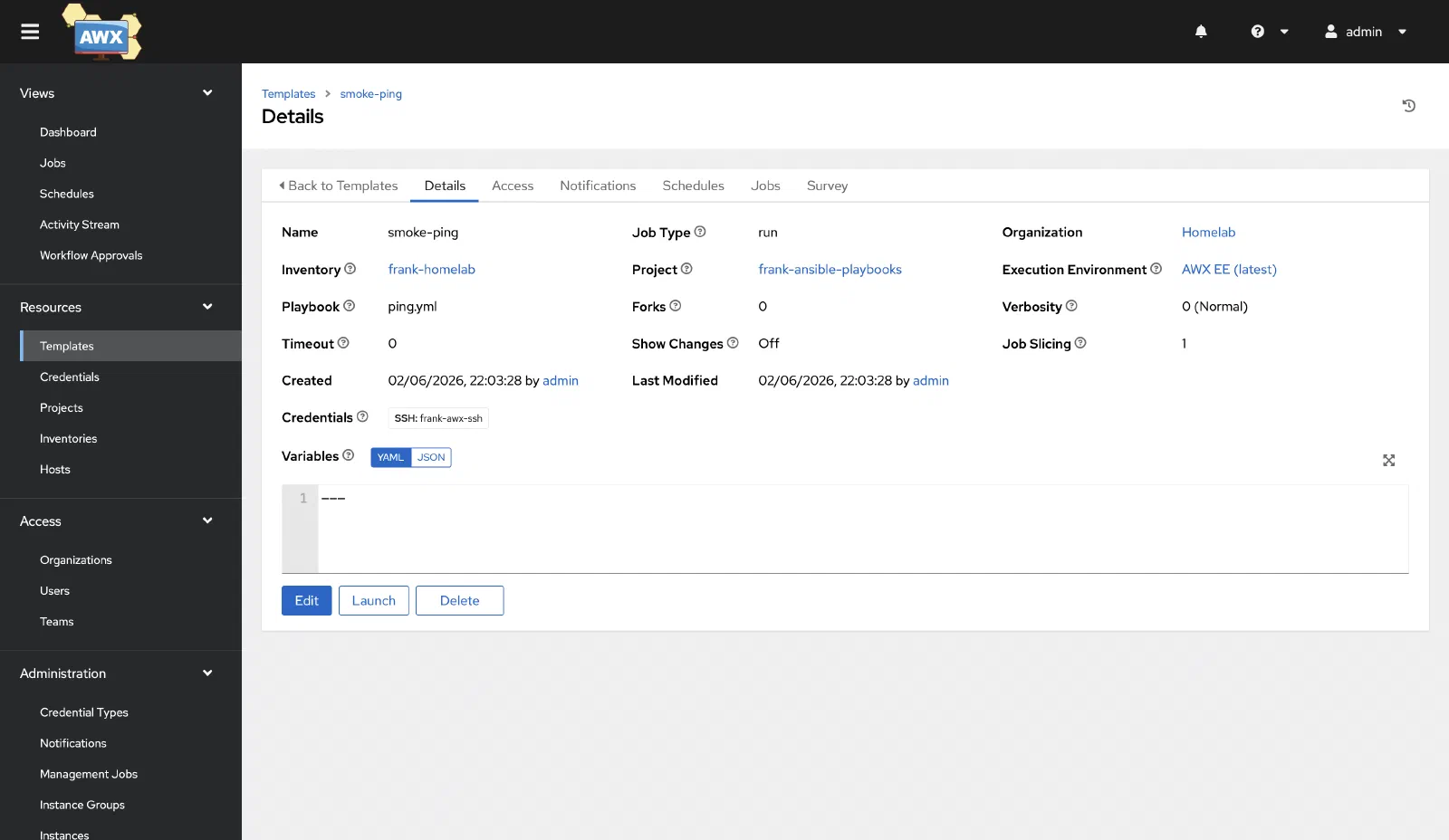

Then the formal version, the artifact I’d actually keep: a Gitea repo holding a two-line ping.yml, an AWX Project that clones it, and a Job Template binding the project, the inventory, and the credential into one launchable thing.

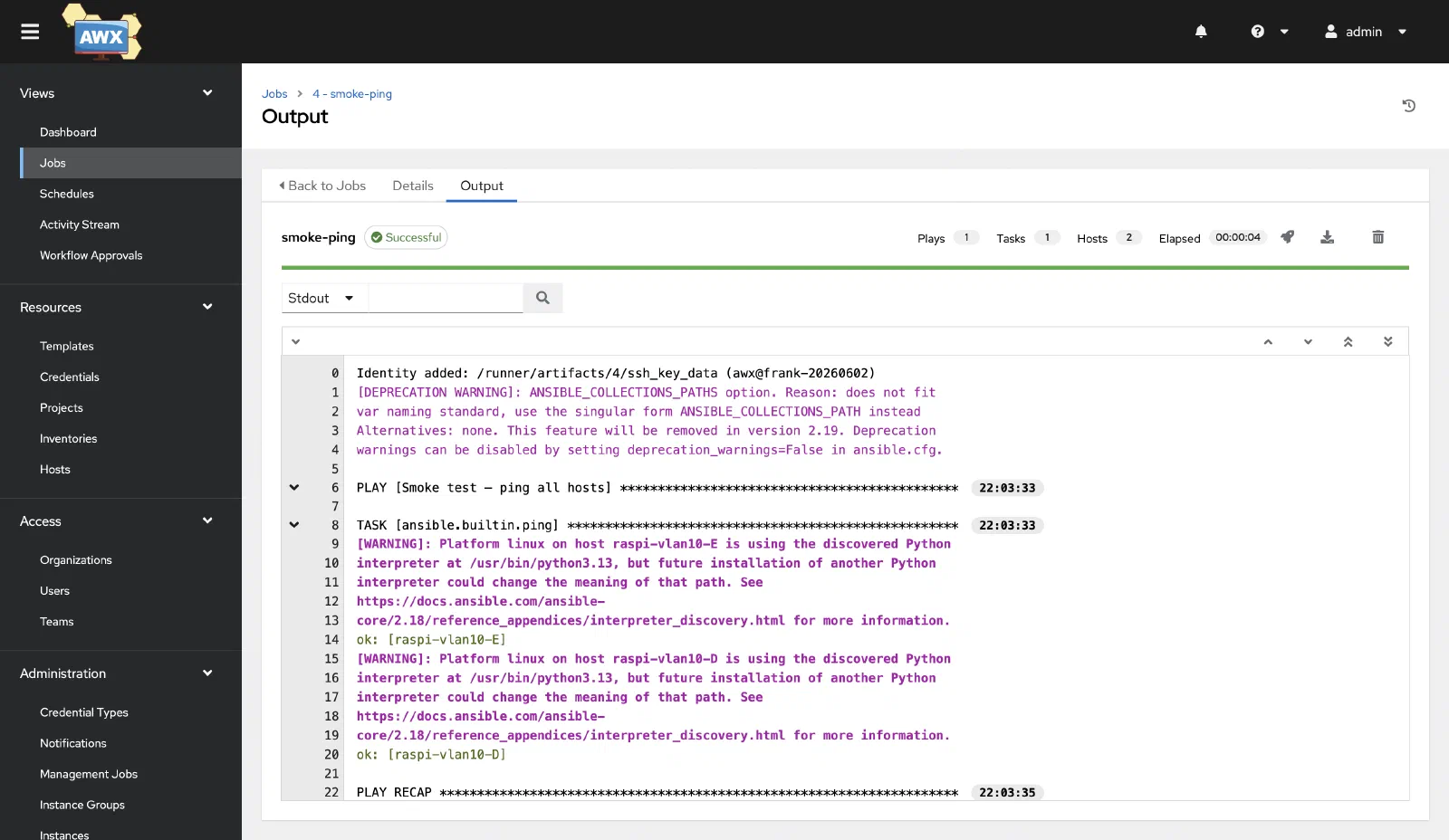

I launched it.

PLAY [Smoke test — ping all hosts] *********************************
TASK [ansible.builtin.ping] ***************************************
ok: [raspi-vlan10-D]
ok: [raspi-vlan10-E]
PLAY RECAP ********************************************************
raspi-vlan10-D : ok=1  changed=0  unreachable=0  failed=0
raspi-vlan10-E : ok=1  changed=0  unreachable=0  failed=0

pong, twice, from two machines I cannot describe in a Talos patch or an ArgoCD Application. That is the whole layer in one word. The imperative arm reached something the declarative body never could, and it came back green.

What I’d do differently

• Treat every Authentik upgrade as a blueprint-schema event. The 2026.x format change sat latent in five blueprints, invisible because old objects masked it. The next provider I add will be the next one to “discover” it unless I lint blueprints against the live importer in CI. That’s the real fix; what I did was firefight the symptom on all five.

• Stop trusting 200. Both the AWX settings PATCH and the ArgoCD Synced badge are status codes that describe the request, not the outcome. The outcome lives in a different place every time — a settings re-read, a pod log, a BlueprintInstance status, a pong. Go look at that.

• Build the onboarding once, then make it a skill. The key-generation, ssh-copy-id, credential/inventory/job-template dance is identical for every future host. It’s now a repo skill (awx-onboard-hosts) so the next Pi is an env file and three scripts, not an afternoon.

What this enables

AWX is the seam between the two halves of the home lab. The Talos side stays declarative and reconciled. The non-Talos side — Pis, mini-PCs, the eventual managed-switch and PDU and whatever else gets a static IP — now has a place to be driven: SSH-reachable, credential-scoped, audited in a job history, launchable on a schedule, and fronted by the same Authentik SSO as everything else. The first playbook says ping. The interesting ones come next: patching, backups of things that don’t live in Git, the boring operational verbs a declarative cluster genuinely cannot speak.

The companion /frank/docs/operating/27-automation/ post covers the day-two side — onboarding a new host, rotating the OIDC secret, reading a failed job, and the break-glass admin for when SSO itself is the thing that’s broken.

References

• Plan & spec: docs/superpowers/plans/2026-05-27--auto--awx-deployment/, docs/superpowers/specs/2026-05-26--auto--awx-deployment-design.md
• App: apps/awx/ (operator values + AWX CR)
• OIDC blueprint: apps/authentik-extras/manifests/blueprints-provider-awx.yaml
• Onboarding skill: agents/skills/awx-onboard-hosts/
• AWX Operator · AWX · Authentik OAuth2 provider
