This is the operational companion to Unified Auth. That post covers the OpenID ConnectAn identity layer on top of OAuth 2.0: it adds a token saying *who* the user is, not merely what the client may do. Frank's single sign-on speaks it, with Authentik as the provider. provider setup and forward auth proxy configuration. This one is what you type when users can’t log in, the login page loops, or clicking a forward-auth-protected service redirects your browser to http://0.0.0.0:9000 — a bug we shipped and fixed.

Before any of the commands below, source the environment:

source .env          # sets KUBECONFIG, TALOSCONFIG
source .env_devops   # sets OMNICONFIG + service accounts

What Healthy Looks Like

Authentication is healthy when Authentik at 192.168.55.211:9000 is responding, all OIDC providers show valid status in the admin UI, and users can log into ArgoCD, Grafana, and Infisical via Single Sign-OnOne login across many applications. On Frank, Authentik holds the session and Traefik asks it before forwarding a request. without errors. Forward auth passes requests through for Longhorn UI, Hubble UI, and Sympozium without redirect loops.

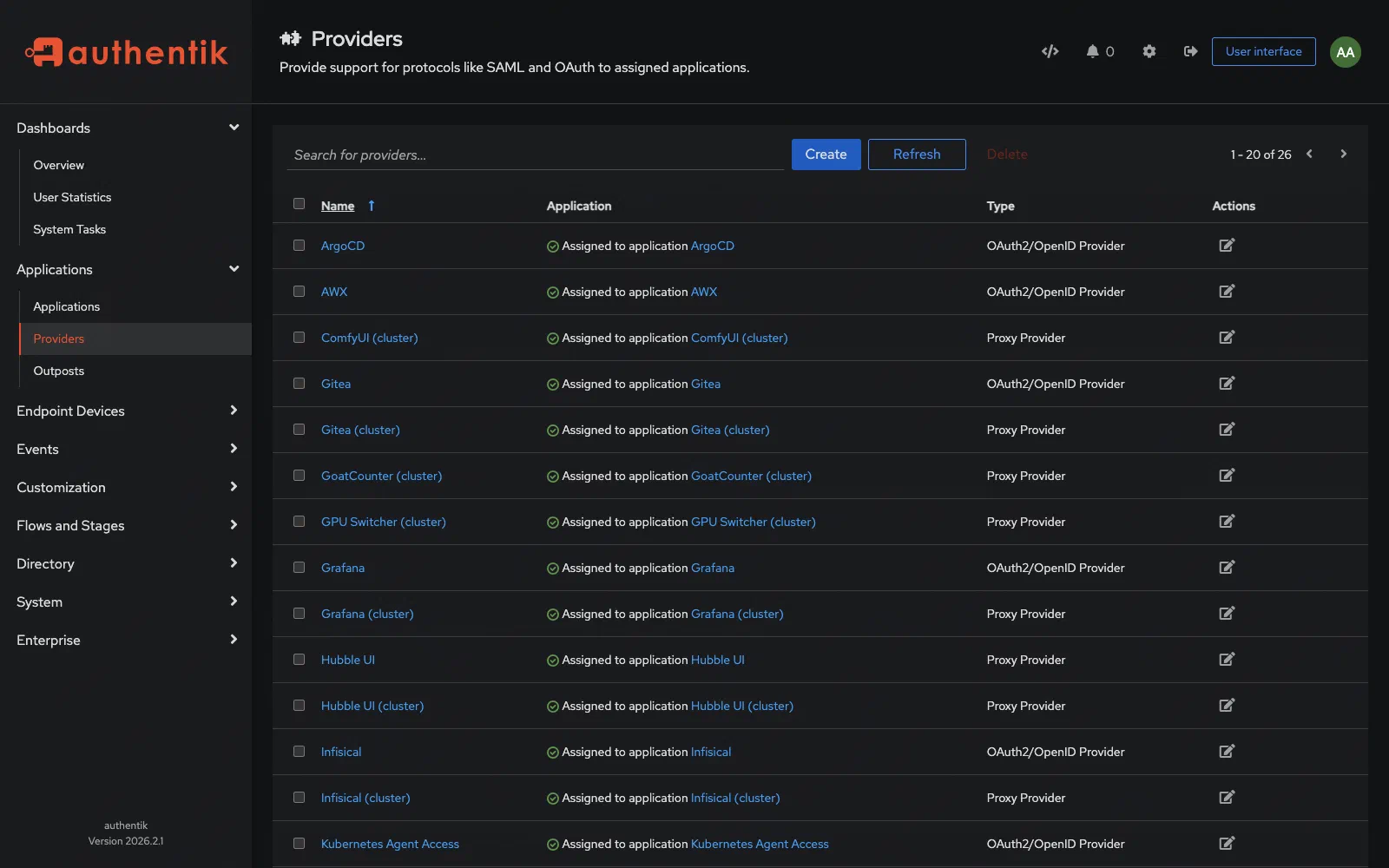

Authentik admin UI: all cluster OIDC and proxy providers with healthy status

    graph TD
  USER["User / Browser"] -->|"https://service.frank.derio.net"| TR["Traefik<br/>Ingress"]
  TR -->|"forward-auth"| FA["forward-auth<br/>middleware"]
  FA -->|"OIDC auth"| AK["Authentik<br/>192.168.55.211:9000"]
  AK -->|"JWT token"| FA
  FA -->|"allow"| TR
  TR -->|"JWT"| SVC["Backend Service<br/>ArgoCD / Grafana / Infisical"]
  AK -->|"OIDC provider"| SVC

Verify

Authentik Status

# Check Authentik pods
kubectl get pods -n authentik

# Check server and worker logs
kubectl logs -n authentik deploy/authentik-server --tail=50
kubectl logs -n authentik deploy/authentik-worker --tail=50

API Access

Authentik API requires a Bearer token. Create one via the Django shell:

# Get a shell into the Authentik server
kubectl exec -n authentik deploy/authentik-server -it -- ak shell

from authentik.core.models import Token, TokenIntents, User
user = User.objects.get(username="akadmin")
token, created = Token.objects.get_or_create(
    identifier="api-ops",
    defaults={"user": user, "intent": TokenIntents.INTENT_API}
)
print(token.key)

# List providers via API
curl -s -H "Authorization: Bearer <token>" \
  http://192.168.55.211:9000/api/v3/providers/all/ | jq '.results[].name'

# List users
curl -s -H "Authorization: Bearer <token>" \
  http://192.168.55.211:9000/api/v3/core/users/ | jq '.results[] | {username, email, is_active}'

Steps

Add Users and Groups

# Create a user via API
curl -s -X POST -H "Authorization: Bearer <token>" \
  -H "Content-Type: application/json" \
  http://192.168.55.211:9000/api/v3/core/users/ \
  -d '{"username": "newuser", "name": "New User", "email": "user@example.com", "is_active": true}'

# List groups
curl -s -H "Authorization: Bearer <token>" \
  http://192.168.55.211:9000/api/v3/core/groups/ | jq '.results[] | {name, pk}'

The Authentik admin UI at http://192.168.55.211:9000/if/admin/ is often faster for one-off changes.

Rotate OIDC Client Secrets

Generate a new secret in Authentik admin UI under the provider settings
Update the secret in Infisical (the source of truth)
Force External Secrets OperatorThe operator that pulls secrets from an external store into Kubernetes Secrets. On Frank it mints short-lived GitHub App tokens, so no long-lived credential is ever committed. to resync: kubectl annotate es <name> -n <ns> force-sync=$(date +%s) --overwrite
Restart the affected service to pick up the new secret

For Grafana specifically, the secret key name must be exactly GF_AUTH_GENERIC_OAUTH_CLIENT_SECRET in the Kubernetes Secret — not client_secret or clientSecret. Authentik sets it one way; Grafana’s envFrom reads it by that exact key.

Manage API Tokens

# List API tokens via Django shell
kubectl exec -n authentik deploy/authentik-server -it -- ak shell

from authentik.core.models import Token
for t in Token.objects.filter(intent="api"):
    print(f"{t.identifier}: {t.user.username} expires={t.expires}")

Recover

Forward Auth Redirects to `0.0.0.0`

If clicking a forward-auth-protected service (e.g., Longhorn, Hubble, the dashboard) redirects the browser to http://0.0.0.0:9000/... instead of https://auth.frank.derio.net/...:

The embedded outpost doesn’t know its own external URL. We fixed this in commit abaae01d by setting AUTHENTIK_HOST in apps/authentik/values.yaml:

global:
  env:
    - name: AUTHENTIK_HOST
      value: "https://auth.frank.derio.net"

After updating the values file, ArgoCD syncs the change. Verify:

# Check that the env var is set on the server pods
kubectl get deploy -n authentik authentik-server \
  -o jsonpath='{.spec.template.spec.containers[0].env[?(@.name=="AUTHENTIK_HOST")].value}'
# Expected: https://auth.frank.derio.net

# Test that forward-auth now redirects correctly
curl -sk -o /dev/null -w "%{redirect_url}\n" https://longhorn.frank.derio.net/
# Expected: https://auth.frank.derio.net/outpost.goauthentik.io/... (not 0.0.0.0)

OIDC Login Loop

If a service redirects back and forth between the login page:

# Check Authentik server logs for OIDC errors
kubectl logs -n authentik deploy/authentik-server --tail=100 | grep -i "oauth\|oidc\|redirect"

# Verify redirect URIs match exactly
curl -s -H "Authorization: Bearer <token>" \
  http://192.168.55.211:9000/api/v3/providers/oauth2/ | jq '.results[] | {name, redirect_uris}'

Common causes:

Redirect Uniform Resource IdentifierThe general form a URL is a case of. The distinction matters where a scheme identifies something that is not fetchable over the network. mismatch — must be exact, including trailing slash
redirect_uris must be a list in the Authentik 2026.x API (not a single string)
Missing invalidation_flow in provider config (required in 2026.x)

Forward Auth 403

# Check the forward auth outpost logs
kubectl logs -n authentik -l app.kubernetes.io/component=outpost --tail=50

# Verify the outpost can reach the Authentik server
kubectl exec -n authentik -l app.kubernetes.io/component=outpost -- \
  curl -s http://authentik-server.authentik.svc:9000/api/v3/root/config/

Grafana Secret Key Mismatch

If Grafana shows “login error” after OIDC redirect:

# Verify the secret key name in the K8s Secret
kubectl get secret -n grafana grafana-oidc -o jsonpath='{.data}' | jq 'keys'

# Must contain: GF_AUTH_GENERIC_OAUTH_CLIENT_SECRET
# NOT: client_secret or clientSecret

Token Validation Failures

# Test the OIDC well-known endpoint
curl -s http://192.168.55.211:9000/application/o/<provider-slug>/.well-known/openid-configuration | jq

# Check token endpoint manually
curl -s -X POST http://192.168.55.211:9000/application/o/token/ \
  -d "grant_type=client_credentials&client_id=<id>&client_secret=<secret>"

Missteps

What we assumed	Why it was wrong	What it cost
The embedded forward-auth outpost would resolve its own external URL from context	Authentik’s outpost doesn’t know the external-facing hostname without the `AUTHENTIK_HOST` env var — it defaults to `0.0.0.0:9000` internally.	Every forward-auth-protected service redirected to `0.0.0.0:9000` until `abaae01d` added the explicit env var.
The K8s Secret key name for Grafana OIDC would match what Authentik sends	Authentik sends the secret as a key-value pair, but `envFromSecret` reads it by the key name `GF_AUTH_GENERIC_OAUTH_CLIENT_SECRET` — not `client_secret` or `clientSecret`.	Grafana’s OIDC login showed a generic “login error” with no useful log message until the key name mismatch was traced.
Forward auth works the same way for every protected service	Some services (like the Hermes agent shell dashboard) don’t interact well with Authentik’s forward auth at all — the redirect loop or 403 can’t be fixed with config alone.	Dashboard access was switched to basic auth instead (commits `7b3ad79f`, `8438ec39`).

Quick Reference

Command	What It Does
`kubectl get pods -n authentik`	Check Authentik pod status
`kubectl logs -n authentik deploy/authentik-server`	Server logs
`kubectl logs -n authentik deploy/authentik-worker`	Worker logs
`kubectl exec -n authentik deploy/authentik-server -it -- ak shell`	Django admin shell
`curl -H "Authorization: Bearer <token>" .../api/v3/core/users/`	List users via API
`curl .../api/v3/providers/oauth2/`	List OIDC providers
`curl .../.well-known/openid-configuration`	Test OIDC discovery

References

🔬 Decision-level view: Paper 11 — Identity for a Heterogeneous Stack
