This is the operational companion to Media Generation, which covers the GPU time-slicing architecture, custom Docker images, and storage layout. Here you’ll find the commands to run, check, and fix the stack day-to-day.

Before any commands, source the environment:

source .env

What Healthy Looks Like

  • The GPU-switcher control pod is Running.
  • The ComfyUI StatefulSet is Running with one or more replicas.
  • The active GPU profile matches the intended workload (e.g., video for video generation).
  • ComfyUI web UI is accessible on its internal ClusterIP service.
    graph LR
    subgraph media["media namespace"]
        gs["GPU Switcher<br/>Deployment"]
        cfy["ComfyUI<br/>StatefulSet"]
        vol["Ollama<br/>Deployment"]

        subgraph pvcs["Persistent Volumes"]
            pvcM["comfyui-models<br/>200Gi RWX"]
            pvcO["comfyui-output<br/>100Gi RWX"]
            pvcC["comfyui-config<br/>10Gi RWX"]
        end

        cfy --- pvcM
        cfy --- pvcO
        cfy --- pvcC
    end

    subgraph gpunode["gpu-1 node"]
        gpu["nvidia.com/gpu: 1"]
    end

    gs -->|scale 1 / scale 0| cfy
    gs -->|scale 1 / scale 0| vol
    cfy ---|requests| gpu
    vol ---|requests| gpu

Verify

Check Stack Status

# Check GPU-switcher pod (controls GPU profiles)
kubectl get pods -n media -l app.kubernetes.io/name=gpu-switcher

# Check ComfyUI pods
kubectl get pods -n media -l app.kubernetes.io/name=comfyui

# Check persistent volumes
kubectl get pvc -n media

# Check GPU profile
kubectl logs -n media -l app.kubernetes.io/name=gpu-switcher --tail=10
$ kubectl get pods -n media
NAME                            READY   STATUS    RESTARTS   AGE
comfyui-0                       1/1     Running   0          12d
gpu-switcher-544b8c9f96-4x9j2   1/1     Running   0          12d

$ kubectl get pvc -n media
NAME               STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE
comfyui-config     Bound    pvc-xxx                                    10Gi       RWX            rook-cephfs    12d
comfyui-models     Bound    pvc-yyy                                    200Gi      RWX            rook-cephfs    12d
comfyui-output     Bound    pvc-zzz                                    100Gi      RWX            rook-cephfs    10d

Access ComfyUI Web UI

# Port-forward to the ComfyUI service
kubectl port-forward -n media service/comfyui 18188:18188

Then open http://localhost:18188 in a browser.

Steps

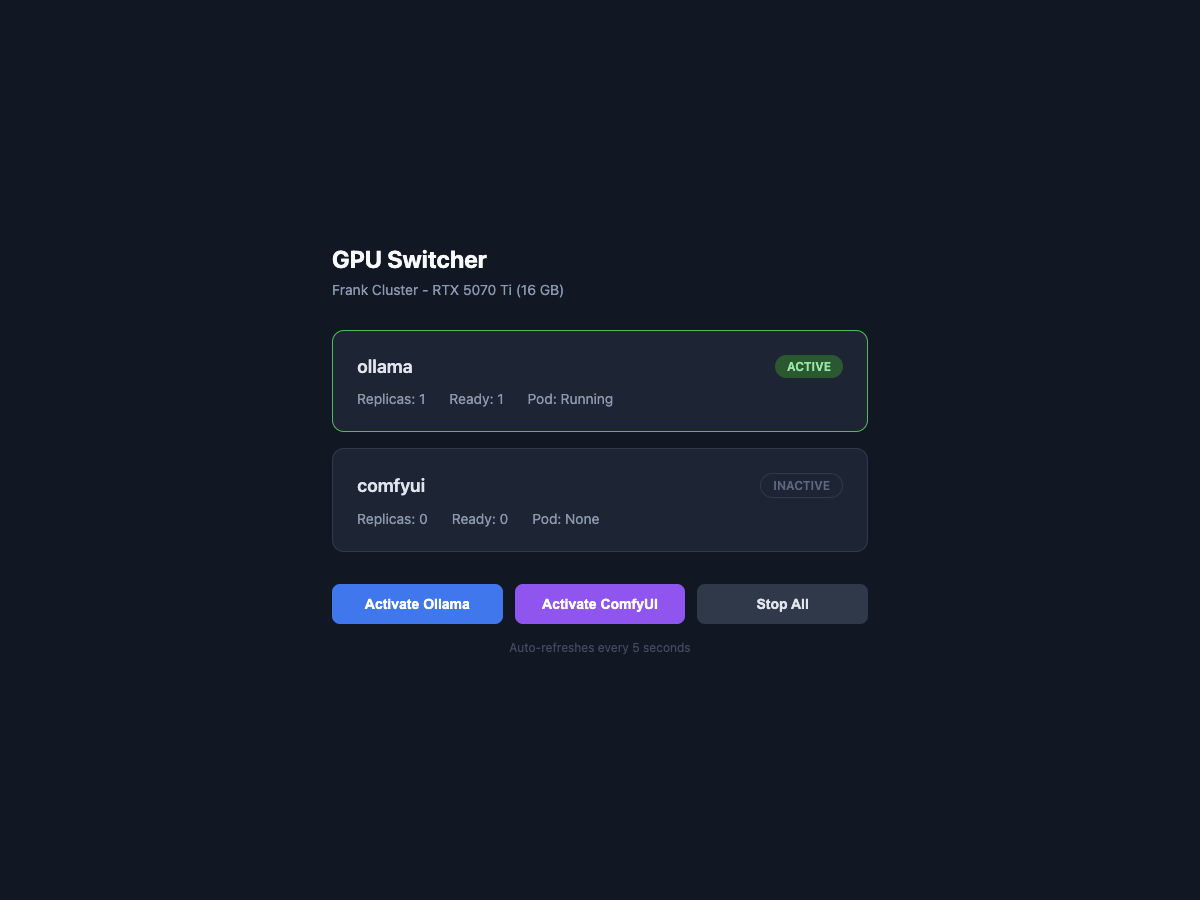

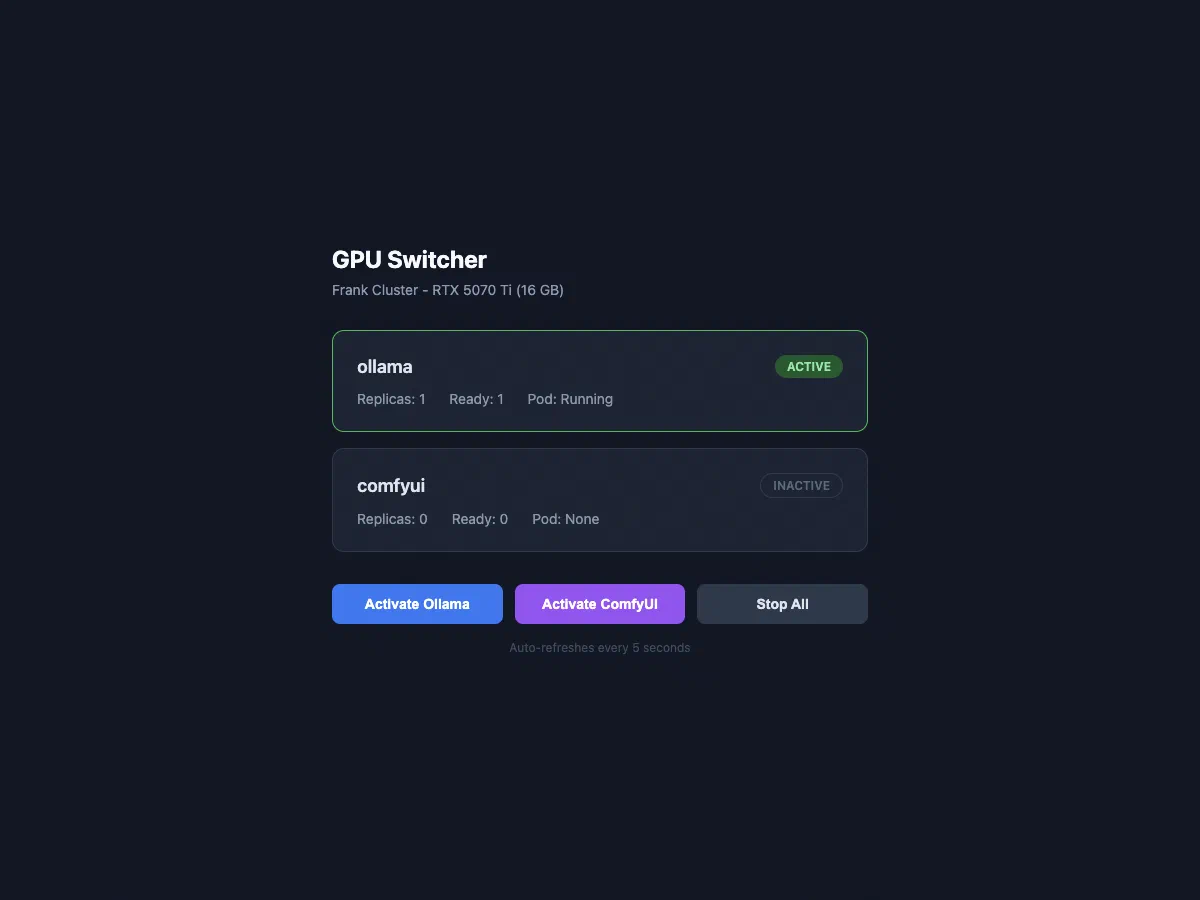

Switch GPU Profile

# Check available profiles
kubectl exec -n media deploy/gpu-switcher -- ls /profiles/

# Switch to video profile
kubectl exec -n media deploy/gpu-switcher -- ./switch.sh video

# Verify
kubectl logs -n media deploy/gpu-switcher --tail=10

Upload a Model

# Copy a model file to the ComfyUI models directory
kubectl cp ./checkpoint.safetensors -n media comfyui-0:/app/models/checkpoints/

# Verify
kubectl exec -n media comfyui-0 -- ls -la /app/models/checkpoints/checkpoint.safetensors

Download Output Files

# List output files
kubectl exec -n media comfyui-0 -- ls -la /app/output/

# Copy output to local machine
kubectl cp -n media comfyui-0:/app/output/generated-image.png ./generated-image.png

# Or tar multiple outputs
kubectl exec -n media comfyui-0 -- tar czf /tmp/outputs.tar.gz -C /app/output/ .
kubectl cp -n media comfyui-0:/tmp/outputs.tar.gz ./outputs.tar.gz

Restart ComfyUI

kubectl rollout restart -n media statefulset/comfyui
kubectl rollout status -n media statefulset/comfyui

Recover

ComfyUI Pod Stuck in CrashLoopBackOff

The most common cause is a Python dependency conflict — typically torchaudio version mismatch or a custom node failing to load.

# Check the logs
kubectl logs -n media comfyui-0 --tail=50

# Check for the specific error
kubectl logs -n media comfyui-0 --tail=20 | grep -i error

Known fixes:

torchaudio mismatch — The PIP-installed torchaudio may conflict with the PyTorch wheel bundled in the image. Pin it to match:

kubectl exec -n media comfyui-0 -- pip install torchaudio==torch

Custom node permission error — Some custom nodes write to site-packages at import time. The fix was version-gating the PersistentVolumeClaimA Kubernetes request for durable storage. The pod names a claim and the storage layer — Longhorn on Frank — binds real disk behind it, so the data outlives the pod. seed: the stoa3→stoa4 upgrade introduced a PVC for custom nodes that needed the right fsGroup:

# In the ComfyUI StatefulSet
securityContext:
  fsGroup: 1000

If the pod won’t start at all, you can’t exec in. Instead, edit the StatefulSet directly:

kubectl edit statefulset -n media comfyui

Under spec.template.spec.securityContext, ensure fsGroup: 1000 is set.

ComfyUI Pod Crashes on Large Model Load

# Check GPU memory
kubectl exec -n media comfyui-0 -- nvidia-smi

# Check if the GPU profile is correct for the model
kubectl logs -n media deploy/gpu-switcher --tail=10

The GPU switcher must be on the right profile — video models need the video profile, image models the image profile. If the profile is wrong, large models Out Of MemoryWhat the kernel does when memory runs out — it kills a process by score, not by fault. A container hitting its cgroup limit is killed the same way, which is why the victim is often not the culprit. immediately.

Pod Pending (No Available GPU)

kubectl describe pod -n media comfyui-0 | grep -A 10 Events

If the pod is Pending with 0/1 nodes are available: 1 Insufficient nvidia.com/gpu, there are no GPU nodes available or the GPUs are fully allocated.

GPU Switcher Issues

The GPU switcher is a lightweight Go binary. Common issues:

# Check logs
kubectl logs -n media deploy/gpu-switcher

# If the image fails due to platform mismatch
# (cross-compiled for wrong arch)
# The fix was using explicit ARG target platform:
kubectl logs -n media deploy/gpu-switcher | grep "platform\|architecture"

If the GPU switcher pod doesn’t start, check it was built with --platform=linux/amd64 — the node runs amd64 even if the build machine is arm64.

Output PVC Not Mounted

If ComfyUI starts but outputs aren’t persistent:

# Check PVC is bound
kubectl get pvc -n media comfyui-output

# Check it's mounted in the pod
kubectl exec -n media comfyui-0 -- mount | grep output

The comfyui-output PVC and comfyui-config PVC were added separately from the comfyui-models PVC in PR #566. If outputs disappear after a pod restart, the PVC is either missing from the StatefulSet template or not bound.

Missteps

What we assumedWhy it was wrongWhat it cost
pip install torchaudio would get the right versionThe PIP index distributes a different build than the Compute Unified Device ArchitectureNVIDIA's GPU programming platform. Practically, the layer every local inference engine sits on, and the reason a driver/toolkit version mismatch stops a model loading. 12.8 wheel baked into the image. Installing without pinning broke audio-capable custom nodes (Wan, FishSpeech).Two iterations to discover torchaudio==torch as the pin.
Custom node PVC could be seeded at any timeThe stoa3→stoa5 PersistentVolumeThe actual piece of storage a PVC binds to. The claim is the request; the PV is what satisfies it. hardening broke existing custom-node PVCs that didn’t have the right version gate.Three separate fixes across stoa3, stoa4, stoa5 (#549, #562).
Cross-compiling a Go binary “just works”The first gpu-switcher build used emulated amd64 (Quick EmulatorThe emulator and virtualiser underneath most Linux virtualisation, including KubeVirt's virtual machines.), which produced corrupted binaries. The second attempt passed the wrong platform string. The binary had to be rebuilt three times.Three rebuild cycles and a force-push.
ComfyUI output directory is always persistentThe original ComfyUI manifest had no output PVC. After a pod restart, all generated media was gone.Lost output files, then added the PVC in a follow-up PR.

Quick Reference

CommandWhat It Does
kubectl get pods -n mediaCheck media stack pods
kubectl get pvc -n mediaCheck PVCs (models, output, config)
kubectl port-forward -n media svc/comfyui 18188:18188Access ComfyUI web UI
kubectl exec -n media deploy/gpu-switcher -- ./switch.sh <profile>Switch GPU profile
kubectl cp <file> -n media comfyui-0:<path>Upload/download files
kubectl rollout restart -n media sts/comfyuiRestart ComfyUI
kubectl logs -n media comfyui-0 | grep -i errorCheck ComfyUI startup errors
kubectl exec -n media comfyui-0 -- nvidia-smiCheck GPU memory usage
