Operating on Ingress

Last updated 2026-08-03 ·99baf9d

This is the operational companion to Ingress, which covers the Traefik architecture, the internal/external entrypoint split, and the Homepage dashboard configuration. Here you’ll find the commands to run when a route is broken, a certificate is expiring, or the dashboard goes blank.

Before any commands below, source the environment:

source .env          # sets KUBECONFIG, TALOSCONFIG
source .env_devops   # sets OMNICONFIG + service accounts

What Healthy Looks Like

All three Traefik pods are Running.
Automatic Certificate Management EnvironmentThe protocol Let's Encrypt uses to issue certificates to a server that can prove it controls a domain. Frank's edge proves it over DNS rather than HTTP, which is what lets it get certificates for hosts the internet cannot reach. certificates show Ready: True with a recent renewal date.

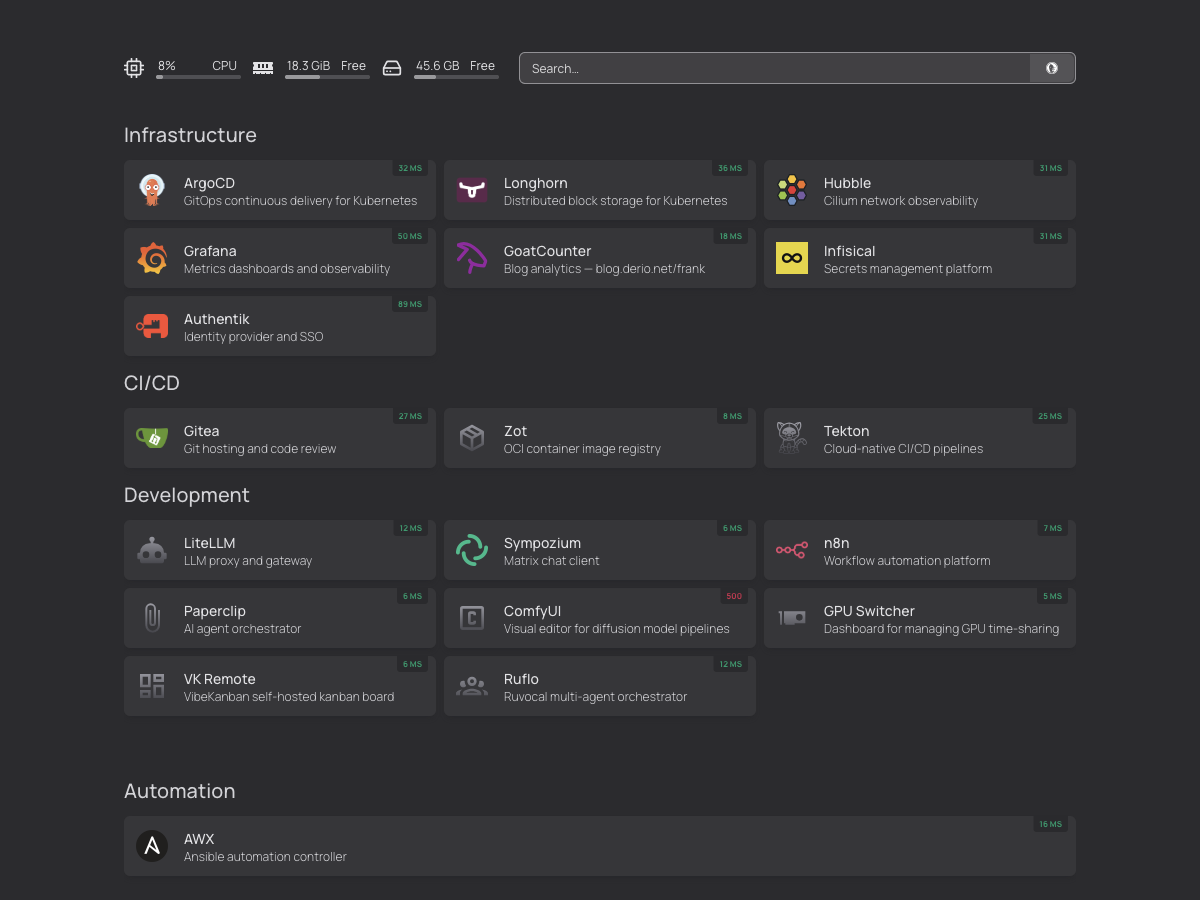

The Homepage dashboard is accessible at homepage.cluster.derio.net and shows tiles for all services.
IngressRoutes resolve for both internal and external entrypoints.
No IngressRoute name ends in -frank — the legacy domain was retired in August 2026.
Every retired *.frank.derio.net name returns NXDOMAIN, with the single exception of omni.frank.derio.net.
The kube-apiserver trusts exactly one OpenID ConnectAn identity layer on top of OAuth 2.0: it adds a token saying *who* the user is, not merely what the client may do. Frank's single sign-on speaks it, with Authentik as the provider. issuer, auth.cluster.derio.net.

    graph TB
    subgraph internet["Internet"]
        req["User Request<br/>*.cluster.derio.net"]
    end

    subgraph cluster["Frank Cluster"]
        subgraph traefikNS["traefik namespace"]
            direction TB
            ext["Traefik External<br/>Entrypoint"]
            int["Traefik Internal<br/>Entrypoint"]
            acme["ACME Certificate"]
        end

        subgraph routes["IngressRoutes"]
            direction TB
            r1["ArgoCD Route<br/>→ authentik SSO"]
            r2["App Route<br/>→ Service"]
            r3["Internal Route<br/>→ ClusterIP"]
        end

        subgraph apps["Backend"]
            svc["Service"]
            pod["Pod"]
        end

        homepage["Homepage Dashboard"]
    end

    req --> ext
    ext --> acme
    ext --> r1
    ext --> r2
    int --> r3
    r1 --> svc
    r2 --> svc
    r3 --> svc
    svc --> pod
    ext -.->|status| homepage
    int -.->|status| homepage

Verify

Check Traefik Pods

kubectl get pods -n traefik -l app.kubernetes.io/name=traefik

# Check the deployment details
kubectl get deployment -n traefik traefik

$ kubectl get pods -n traefik
NAME                       READY   STATUS    RESTARTS   AGE
traefik-6f5b8c7d9-abc12    1/1     Running   0          45d
traefik-6f5b8c7d9-def34    1/1     Running   0          45d
traefik-6f5b8c7d9-ghi56    1/1     Running   0          45d

Check ACME Certificate Status

# List all certificates
kubectl get certificate -A

# Check a specific certificate
kubectl describe certificate -n traefik traefik-default-cert

# Check the ACME challenge status in Traefik logs
kubectl logs -n traefik -l app.kubernetes.io/name=traefik --tail=50 | grep -i acme

$ kubectl get certificate -A
NAMESPACE   NAME                              READY   SECRET                            AGE
traefik     traefik-default-cert              True    traefik-default-cert-tls          60d
traefik     wildcard-derio-net-cert           True    wildcard-derio-net-cert-tls       30d
argocd      argocd-server-tls                 True    argocd-server-tls                 120d

Check IngressRoutes

# List all IngressRoutes
kubectl get ingressroute -A

# Check a specific route
kubectl describe ingressroute -n <namespace> <name>

Check the Retired Domain Stays Retired

Two checks, and both are worth running the positive way round. dig +short printing nothing means the same thing whether the name is gone or the resolver is broken, so assert on the response status:

# every retired name must be NXDOMAIN — not merely "no output"
for h in auth grafana argocd longhorn hubble infisical paperclip sympozium n8n-01; do
  printf '%-28s %s\n' "$h.frank.derio.net" \
    "$(dig +noall +comment "$h.frank.derio.net" | grep -o 'status: [A-Z]*')"
done

# the two deliberate survivors
dig +short omni.frank.derio.net                     # must still resolve
grep -n 'frank\.derio\.net:' \
  clusters/hop/apps/headscale/manifests/configmap.yaml   # split-DNS suffix, must stay

# no compatibility routes crept back
kubectl -n traefik-system get ingressroute -o name | grep -- '-frank' || echo "clean"

Check the Cluster Trusts Only One Issuer

The authoritative check is behavioural — mint a token through each host and submit both to TokenReview. The legacy one must be rejected:

kubectl -n kube-system get pods -l component=kube-apiserver \
  -o jsonpath='{range .items[*]}{.spec.containers[0].command}{"\n"}{end}' | grep -c -- '--oidc-'
# must print 0 — structured auth replaced the flags entirely

scripts/tmp/p6-verify.sh (gitignored, base clone) runs the whole board — routes, Authentik objects, both token paths, Omni, and DNS — and reports PASS/FAIL/PENDING per check.

Gate on kubectl get nodes, never on /readyz. The latter includes etcd readiness and is served per-apiserver behind the Omni round-robin, so one flapping member makes it fail intermittently while the cluster is perfectly usable.

Check Homepage Status

# Check if the config update was picked up
kubectl rollout status -n homepage deployment/homepage

# Check if the tiles render correctly by curling the page
kubectl exec -n homepage deploy/homepage -- wget -qO- http://localhost:3000/api/services

Steps

Check HTTP Routing

# Check if the internal entrypoint is working
kubectl port-forward -n traefik svc/traefik-internal 9000:9000

# Check if the external entrypoint is working
kubectl port-forward -n traefik svc/traefik 9000:9000

Then visit http://localhost:9000/dashboard/.

Restart Homepage Pod

When tiles are stale, Single Sign-OnOne login across many applications. On Frank, Authentik holds the session and Traefik asks it before forwarding a request. is misconfigured, or the config needs to be refreshed:

kubectl rollout restart -n homepage deployment/homepage
kubectl rollout status -n homepage deployment/homepage

Recover

Route Returns 404

# Check if the IngressRoute exists
kubectl get ingressroute -A | grep <service-name>

# Check if the Service exists and has endpoints
kubectl get svc -n <namespace> <service-name>
kubectl get endpoints -n <namespace> <service-name>

# Check Traefik logs for routing errors
kubectl logs -n traefik -l app.kubernetes.io/name=traefik --tail=50 | grep <service-name>

If the IngressRoute is missing, add it following the pattern in apps/traefik/ingressroutes/. If the Service has no endpoints, the backing pod is not running or the label selector is wrong.

Certificate Not Renewing

# Check certificate expiry
kubectl get certificate -A -o wide

# Check if the ACME issuer is reachable
kubectl exec -n traefik deploy/traefik -- wget -qO- https://acme-v02.api.letsencrypt.org/directory

# Check Traefik ACME logs for the specific certificate
kubectl logs -n traefik -l app.kubernetes.io/name=traefik --tail=100 | grep -B5 -A5 "certificate.*renew"

Common causes: DNS resolution failure for the domain, Let’s Encrypt rate limiting, or the ACME HTTP-01 challenge port (80) not being reachable from the internet. If the certificate is managed via cert-manager instead of Traefik’s built-in ACME:

# Check cert-manager resources
kubectl describe certificaterequest -n <namespace> <name>

Homepage Dashboard is Blank

# Check the pods
kubectl get pods -n homepage

# Check logs
kubectl logs -n homepage deploy/homepage --tail=50

# Check if the config updated
kubectl get configmap -n homepage homepage-config -o yaml

Homepage uses a ConfigMap for its settings. If the configMapGenerator in kustomization.yaml was changed, the pod needs to be restarted to pick it up:

kubectl rollout restart -n homepage deployment/homepage

Broken Forward Authentication (SSO)

If a service’s Auth middleware is misconfigured, you may get 401 or 500 on the route. Check:

# Check the middlewares on the IngressRoute
kubectl describe ingressroute -n <namespace> <name> | grep -A 10 "middlewares"

# Check the auth service is running
kubectl get pods -n authentik

# Check auth middleware definition
kubectl get middleware -n traefik

To bypass SSO for debugging (temporarily), remove the middlewares: block from the IngressRoute, test the route, then add it back.

A Retired `*.frank.derio.net` Name Still Answers

Deleting the manifest from Git does not delete the object — every Application here runs prune: false, so removal only stops ArgoCD managing it. The app sits OutOfSync and the route keeps serving:

# find the true owner — the routes live in apps/traefik/manifests but belong to
# traefik-extras, while the similarly-named `traefik` app is the Helm chart
kubectl -n traefik-system get ingressroute <name> \
  -o jsonpath='{.metadata.annotations.argocd\.argoproj\.io/tracking-id}'

kubectl -n traefik-system delete ingressroute <name>
kubectl -n traefik-system get ingressroute <name>   # assert NotFound, not "Synced"

Do this only after the cluster.derio.net equivalent is confirmed working — it is the moment the legacy edge stops serving.

`kubectl` Rejects a Kubeconfig That Used to Work

Almost always a token minted before the issuer cutover. The apiserver now trusts only auth.cluster.derio.net, so anything carrying iss: auth.frank.derio.net is rejected outright:

# decode the issuer WITHOUT printing the token
python3 - <<'PY'
import base64, json, os
tok = os.environ["TOK"]                    # export TOK=... first
p = tok.split(".")[1]; p += "=" * (-len(p) % 4)
c = json.loads(base64.urlsafe_b64decode(p))
print("iss =", c.get("iss"), "| exp =", c.get("exp"))
PY

Re-mint it. There is no fallback — the overlap that would have covered this closed in August 2026.

Homepage Tile Shows Broken Icon

If a tile renders but the icon is broken (the “GoatCounter goat” placeholder):

kubectl logs -n homepage deploy/homepage --tail=20 | grep -i icon

The icon URL in the tile config may need updating. Edit the services.yaml entry for the service in apps/homepage/config/services.yaml.

Missteps

What we assumed	Why it was wrong	What it cost
Homepage picks up config changes automatically	Homepage reads the ConfigMap at startup. The `configMapGenerator` produces a new ConfigMap name on change, but the deployment doesn’t auto-roll. The pod must be manually restarted.	Stale tiles persisted until someone noticed and restarted.
Authentik forward-auth works for every route	The Hermes agent-shell dashboard route needed simple basic auth, not forward auth. The forward-auth middleware was blocking legitimate traffic.	One debugging session to revert to basic auth (#629).
All internal routes go through the external entrypoint	Some services shouldn’t be internet-facing at all. The fix was an internal-only entrypoint (`traefik-internal`) that skips ACME and external middleware.	Re-architecture to split entrypoints, then migration of internal routes.
Merging the retirement PR would remove the legacy routes	`prune: false` means removal from Git stops management, not the object. All nine `-frank` routes kept serving. The Authentik half of the same PR did* self-remove — blueprint `state: absent` is real declarative deletion — which made the other half look done.	Nine routes served a retired domain until a live check caught them; now a manual delete step.
`omnictl apply` proves the patch was applied	It reads a local file. Two applies reported success while re-applying the pre-merge config from an unpulled checkout.	Two wasted apply cycles; caught only because the legacy-token check stayed red.
“The alert is gone” means the fix worked	For a dead-man’s switch the alert also clears when the underlying failure resolves on its own. The only real test is to induce the miss it must tolerate.	Nearly closed a false-positive page without fixing its cause.

Quick Reference

Command	What It Does
`kubectl get pods -n traefik`	Check Traefik pods
`kubectl get certificate -A`	List all Transport Layer SecurityThe encryption under HTTPS and most other secure protocols. What a certificate is for, and what fails visibly when the certificate does not match the hostname. certificates
`kubectl get ingressroute -A`	List all HTTP routes
`kubectl describe ingressroute -n <ns> <name>`	Show route details
`kubectl rollout restart -n homepage deploy/homepage`	Restart Homepage
`kubectl logs -n traefik deploy/traefik \| grep <svc>`	Check Traefik logs for a service
`kubectl get endpoints -n <ns> <svc>`	Check if service has backends
`kubectl get middleware -n traefik`	List Traefik middlewares
`kubectl -n traefik-system get ingressroute -o name \| grep -- -frank`	Check no legacy route crept back
`dig +noall +comment <name>.frank.derio.net \| grep status:`	Assert `NXDOMAIN` (not just empty output)
`bash scripts/tmp/p6-verify.sh`	Full retirement board — routes, issuer, Omni, DNS

References

🔬 Decision-level view: Paper 15 — Ingress, Forward-Auth, and the Service Catalog
