Operating on ArgoCD Drift

Last updated 2026-07-27 ·951c0c4

This is a debugging-focused companion to Operating on GitOps. That post covers day-to-day ArgoCD commands. This one covers what happens when OutOfSync stops being useful.

When I last ran argocd app list, 20 of 52 apps were OutOfSync. I’d been ignoring it — everything worked, dashboards were green. Then I investigated. Not one bug. Seven. And one of them was hiding a 21-day crashloop.

    graph TB
    subgraph git["Git Source"]
        manifest["Deployment YAML<br/>no default values"]
    end

    subgraph api["API Server (apply)"]
        crd["CRD Schema<br/>injects defaults"]
        normalized["Normalized object<br/>with defaults set"]
    end

    subgraph argocd["ArgoCD Comparison"]
        git_copy["Git version<br/>(no defaults)"]
        live["Live version<br/>(with defaults)"]
        diff["Three-way diff<br/>flags mismatch"]
    end

    manifest -->|"kubectl apply"| crd --> normalized
    git_copy -.-> diff
    live -.-> diff
    diff -->|"OutOfSync"| dashboard["20 apps<br/>permanently red"]
    diff -.->|"masked"| crashloop["21-day CrashLoopBackOff<br/>in argo-rollouts"]


What Healthy Looks Like

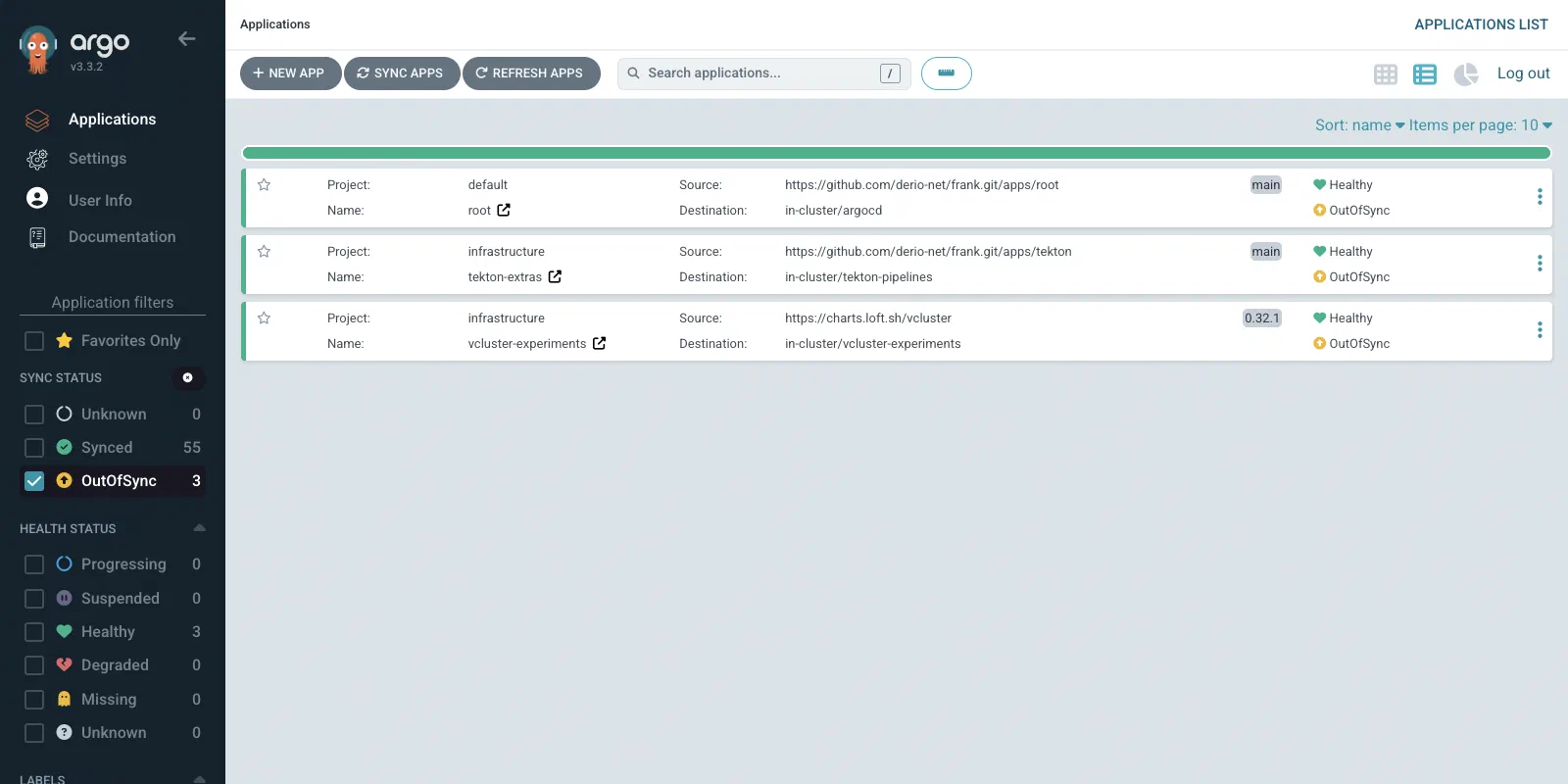

A healthy ArgoCD install isn’t one where every app is Synced — it’s one where OutOfSync actually means something is wrong. If the column is always red, you stop reading it.

Target: 52 apps, ≤2 OutOfSync, both with known and documented residuals.

Diagnose

Start with a bird’s-eye view of what’s drifting:

kubectl -n argocd get applications -o json \
  | jq -r '.items[] | .metadata.name as $app
           | .status.resources[]?
           | select(.status != "Synced")
           | "\($app)\t\(.kind)/\(.name)\t\(.namespace // "cluster")"' \
  | sort

This gives you the shape of the drift: which app has which kind drifting, at which scope. Patterns jump out immediately.

On my cluster the output was dominated by three kinds: ExternalSecret (10 apps), Application (12 entries under root), and CustomResourceDefinition (12 entries).

Recover

Class A: CRD Schema Defaults

Symptom: every ExternalSecret drifts with fields like deletionPolicy: Retain, conversionStrategy: Default that the CRDCustomResourceDefinitionThe object that teaches the Kubernetes API a new resource type. Install a CRD and the API server starts serving a kind it has never heard of, with validation and RBAC like any built-in. schema injects but git doesn’t have.

Fix: pin the defaults in git so the manifest matches what the CRD writes.

spec:
  target:
    creationPolicy: Owner
    deletionPolicy: Retain
  data:
    - secretKey: ANTHROPIC_API_KEY
      remoteRef:
        key: ANTHROPIC_API_KEY
        conversionStrategy: Default
        decodingStrategy: None
        metadataPolicy: None

After pinning: 10 apps moved from OutOfSync to Synced.

Class B: Default-Value Phantom Diff

Symptom: root app shows child Applications drifting because prune: false is explicit in git but ArgoCD normalises it away (it’s the CRD schema default).

Fix: drop the explicit line.

for f in apps/root/templates/*.yaml; do
  sed -i '/^      prune: false$/d' "$f"
done

Same pattern applies to group: "" in ignoreDifferences blocks — ArgoCD treats empty-string groups as unset.

Class C: Orphan CRDs

Symptom: Tekton and Argo Rollouts CRDs are OutOfSync — they were installed by a pre-ArgoCD bootstrap and have no argocd.argoproj.io/tracking-id annotation.

kubectl get crd rollouts.argoproj.io -o jsonpath='{.metadata.annotations}'

Fix: annotate them, then use ignoreDifferences for the metadata noise:

for crd in analysisruns.argoproj.io analysistemplates.argoproj.io \
           clusteranalysistemplates.argoproj.io experiments.argoproj.io \
           rollouts.argoproj.io; do
  kubectl annotate crd $crd \
    "argocd.argoproj.io/tracking-id=argo-rollouts:apiextensions.k8s.io/CustomResourceDefinition:/$crd" \
    --overwrite
done

ignoreDifferences:
  - group: apiextensions.k8s.io
    kind: CustomResourceDefinition
    jsonPointers:
      - /metadata/labels
      - /metadata/annotations
      - /spec/preserveUnknownFields

Class D: Zombie Sub-charts

Symptom: resources from disabled sub-charts persist because prune: false keeps them alive — redis-cluster Services, ingress-nginx ClusterRoles, ValidatingWebhookConfigurations.

Pre-delete verification:

# Are any Ingress resources still using the nginx IngressClass?
kubectl get ingress -A -o json \
  | jq -r '.items[] | select(.spec.ingressClassName=="nginx")
                   | "\(.metadata.namespace)/\(.metadata.name)"'

Rollback dump before deleting anything:

mkdir -p /tmp/argocd-drift
kubectl get clusterrole infisical-ingress-nginx -o yaml \
  > /tmp/argocd-drift/rollback-infisical-clusterrole.yaml

Then delete one at a time. Nothing broke in our case — every service uses Traefik now.

Class E: Two Apps Fighting for One Namespace

Symptom: sympozium-extras and sympozium both try to own the same namespace’s tracking-id annotation.

managedNamespaceMetadata won’t help — it only applies to namespaces ArgoCD auto-creates, not chart-rendered ones.

Fix: apply labels out-of-band, delete the duplicate manifest.

kubectl label ns sympozium-system \
  pod-security.kubernetes.io/enforce=privileged \
  pod-security.kubernetes.io/audit=privileged \
  pod-security.kubernetes.io/warn=privileged --overwrite

Labels are sticky — once applied, they survive chart re-renders. Document as a manual op.

Class F: Terminal Hook Noise

Symptom: completed Jobs (postgres-vk-init-electric, PipelineRun) show as OutOfSync — they complete, ArgoCD flags them because requiresPruning: true but prune: false refuses to clean up.

One-shot delete works but they’ll come back on the next sync (they’re supposed to). Permanent fix: hook-delete-policy: BeforeHookCreation,HookSucceeded on the hook definition.

Class G: Chart-Operator Disagreement

Symptom: apps where the chart or operator injects fields git doesn’t specify — timestamps, hashes, defaults.

Class H: Stale Revision — the inverse failure (added 2026-07-27)

Classes A–G are all the same shape: OutOfSync that means nothing. This one is the mirror image — Synced that means nothing — and it is worse, because the first kind is merely noisy while this kind is silent.

Symptom: an Application reports Synced/Healthy minutes after a merge, while the live resource still holds pre-merge content. Seen twice in one session on 2026-07-27: longhorn’s rendered ConfigMap was missing a key the merged values add, and hermes-agent-shell’s PVC still requested the pre-merge size. argocd.argoproj.io/refresh: hard did not clear either.

There is no ignoreDifferences fix here, because nothing is drifting. Synced is a claim about live matching what ArgoCD fetched, not about live matching main.

Rule out your own manifest first — a chart silently dropping an unrecognised key looks identical from the cluster:

helm template <release> <chart> --version <ver> -f <values> | grep -A5 'name: <rendered-object>'

If the key renders locally and is absent live while the app claims Synced, force a real sync operation:

kubectl -n argocd patch application <app> --type=merge \
  -p '{"operation":{"sync":{"revision":"HEAD","syncOptions":["ServerSideApply=true","RespectIgnoreDifferences=true"]}}}'

Both cleared within seconds. Multi-source apps (upstream chart + a $values ref into this repo) look the most exposed, though the underlying cause was never established — the recovery is known, the mechanism is not.

Distinguish it from ordinary poll lag before acting: an Application that has simply not polled the newest commit yet converges on its own within a few minutes and was never wrong, only behind. Compare .status.sync.revision against the commit you merged and wait one poll interval before forcing anything.

The wider pattern — four distinct ways a green tile diverges from reality, and the check for each — is Operating on Green.

The Unmasked Bug

The most important fix wasn’t about any of the seven drift classes.

When I resolved argo-rollouts’s drift, the controller logs became readable for the first time:

NAME                             READY   STATUS             RESTARTS           AGE
argo-rollouts-6b4c4dfbd9-ghl9c   0/1     CrashLoopBackOff   1154 (2m18s ago)   21d

1154 restarts. 21 days. The pod log:

level=fatal msg="Failed to download plugins: ...
  response code Not Found"

I had a trafficRouterPlugins entry in values.yaml pointing at a Cilium plugin URL that never existed — argoproj-labs has no such repo. The controller crashed on every startup. The drift noise had masked it completely.

Takeaways

• Classify before you fix. Seven drift classes. Each needed a different fix. Blanket ignoreDifferences would have hidden the crashloop.
• Pin schema defaults in git where possible. Preferred over ignoreDifferences because real changes still flag.
• Dump before you delete. kubectl get -o yaml > rollback.yaml saves you from a bad Monday.
• Read the logs of every app that moved from Progressing. That’s where the hiding things are.

Missteps

References

• Plan: docs/superpowers/plans/2026-04-15--gitops--argocd-drift-cleanup.md
• Operating on GitOps
• ArgoCD ignoreDifferences
• Kubernetes ServerSideApply
• Operating on Green — four ways a green tile diverges from reality
